Product Information
TECHNICAL PARAMETERS:
Model

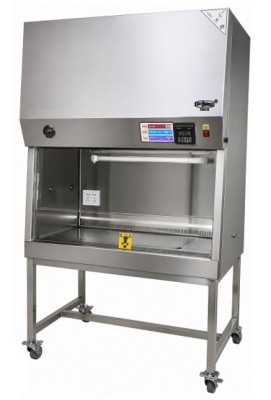

Class II Bio-Safety Cabinet, Type B2 (100% Exhausted)
Internal Cabinet Size
4' x 2' x 2' (8") Sash opening.
Exterior Finish Material
SS 304 Stainless Steel.
Internal Chamber Material
SS 304 Stainless Steel with Curve Corners.
UV & Illumination
Programmable UV timer (0–24hrs), LED illumination (1300 Lux)
Power Consumption
<450W.
Noise level
≤64dB(A)
Filtration
Dual HEPA Filters
HEPA Filter Efficiency
99.99% MPPS @ 0.3 μm
Average Velocity
Inflow 0.53m/s (105 FPM), Down flow 0.35m/s. (70 FPM)
Safety Features
Removable Rear paper Catch grille prevent blockage by lab. waste & small objects.
Certification
CE & NSF 49 Certified
PC Connectivity
RS232 Access Port and USB port for Data Logging & Data Transfer
Accessories
UV Germicidal lamp, LED light, Gas Service Fixture, Internal Electrical outlet, & Stand with lockable Castor wheels. with 15' PVC Hard Ducting.
Warranty
3 years’
BIO SAFETY CABINET (Class II, TYPE B2) (59/12)
PRODUCT FEATURES:
- Ergonomic type design
- Dynamic Angled Chamber design blower plenum and side walls surrounded by negative pressure.
- Maintainance Free DC ECM blower downflow and external blower with ducting.
- Single-piece SS 304 Armrest.
- Integrated Electrical power outlet provided for convenient operation.
- Adjustable Height-lockable Caster wheel Stand for Easy Single-person mobility.
- Robust Height Adjustment & Support Stand.
- Microprocessor Colour LCD Displaying inflow velocity, Filter life, UV timer, Alarms, & Operating status.
