BRICK CUTTING MACHINE

Home BRICK CUTTING MACHINE
BRICK CUTTING MACHINE |PSAW

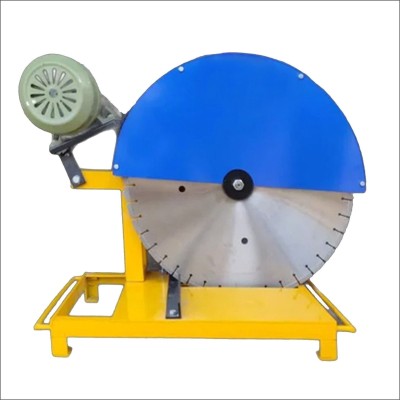

BRICK CUTTING MACHINE

Model No: PSAW-134

General Features :

  • Suitable for precision cutting of fired clay bricks, fly ash bricks, concrete blocks, AAC blocks, geopolymer bricks, and similar construction materials for laboratory testing purposes.
  • Bench-mounted compact design.
  • Heavy-duty rigid steel frame with vibration-free construction.
  • Manual feed arrangement for smooth and accurate cutting.
  • Integrated water cooling system for continuous blade cooling and dust suppression.
  • Suitable electric motor for continuous laboratory operation.
  • Safety guard covering the cutting blade.
  • Easy operation and maintenance.
  • Blade suitable for the required cutting capacity.
  • Cutting accuracy suitable for preparing laboratory test specimens with smooth and parallel faces

Enquire Now

Product Information

Technical Specifications :

  • Machine Construction : Heavy-duty fabricated steel frame (corrosion-resistant finish)
  • Maximum specimen size (LxD) : 300 × 150 mm
  • Cutting blade : Diamond impregnated blade (for masonry materials)
  • Blade diameter : 350 mm
  • Feed mechanism : Manual (smooth feed arrangement)
  • Cooling system : Continuous water circulation system
  • Specimen holding :  Adjustable vice clamping arrangement
  • Motor - 1 HP (heavy-duty AC motor)
  • Power Supply : 230 V AC, Single Phase, 50 Hz
  • Warranty : 1 Year



Functional Requirements :

  • Cutting bricks and masonry specimens accurately.
  • Producing smooth, parallel, and square cut surfaces suitable for laboratory testing.
  • Cutting specimens repeatedly without excessive vibration.
  • Preparing specimens for compression, water absorption, efflorescence, density, and other standard tests.
  • Continuous operation under laboratory conditions.



Safety Features :

  • Emergency stop switch.
  • Splash protection.
  • Water cooling arrangement.
  • Electrical overload protection.
  • Anti-corrosion water tray.



Standard Accessories :

  • Diamond cutting blade.
  • Water circulation tank and pump (if applicable).
  • Specimen holding vice/clamping arrangement.
  • Necessary tools and accessories.
  • User manual.
  • Power cable with plug.
  • Standard toolkit.
