Product Information
SPECIFICATIONS:
MODEL
PSAW-6L
Capacity
252 g
Make
PSAW
Readability
0.1mg (0.0001g)
Repeatability
0-200 g: ±0.1 mg & 200-252 g: ±0.2 mg
Linearity (±)
0.3mg
Min.(weight)
140 mg
Display
LCD (Reverse Backlit)
Pan Size
90 mm Ø
Stabilization Time
2 Sec. approx.
Calibration
Internal Calibration
Tare Range
Full
Sensitivity Drift
±2 ppm/°C @ 10°C to 30°C & 50°F to 86°F
Unit
mg, g,ct, ozt, oz, ct, mom, gr, SG, dwt, lb, pcs, %
Key Sound
Yes
Weighing Chamber Height
210mm
Display Refresh Rate
5 times/second (Selectable up to 10 times/second)
Class
I
Interface
RS232C & User Interface
Data Output Mode
Command and continuous Output
Power Supply
AC 220V/50-60 Hz
Dimension (WxDxH)
198 x 294 x 315mm Approx (External)
Weight
3.9 kg Approx.

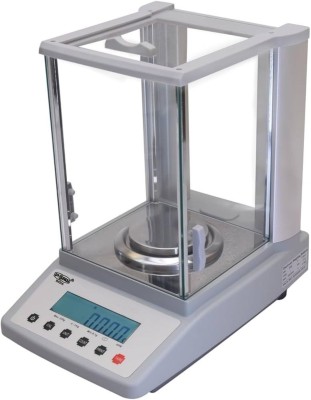

Analytical Balance (6L)
SALIENT FEATURES:
- User-programmable weighing unit (e.g., tl, tol, N or other conversion units).
- High-speed weighing with approx. 2-second stabilization (FAST mode under ideal conditions).
- Adjustable response characteristics to compensate for drafts and vibrations.
- User Access Control (UAC) with password protection for secure operation.
- Compact design with a footprint of 198 × 294 mm.
- Supplied with a removable breeze break featuring rotary sliding doors for convenient sample handling.
- Removable, shatterproof breeze break with anti-static coating.
- Built-in RS-232C interface & USB interface with cable for easy data transfer.
- Supports density determination with optional density determination kit.
- Adjustable response characteristics with Hold Function for stable readings.
- Integrated Statistical Calculation Function for data analysis.
