Product Information
TECHNICAL SPECIFICATIONS:
- Model : PSAW-224
- Capacity : 220 g
- Readability d (resolution) : 0.1 mg
- Repeatability (sd.), 5% of Full Load Typical : 0.05 mg
- Repeatability (sd.), 5% of Full Load to Full Range : 0.1 mg
- Calibration : Internal Calibration
- Linearity Deviation : 0.2 mg
- Span Calibration Points : 50g, 100g, 150g, 200g
- Weighing Units : g, mg, ct, N, oz, ozt, Grain, dwt, mo, msg, tl H, tl S, tl T, tcl, tola, baht, Custom 1, Custom 2
- Applications : Basic and Essential Weighing, Statistics, Formulation, Piece Counting, Parts Counting, Check Counting and Weighing, Percent Weighing, Dynamic Weighing, Totalization, Interval Weighing, Formulation, % Weighing, Factor Weighing Differential, Density Determination, Peak Hold, EMFC, Tare, Data Management, Level Control
- Stabilization Time (typical) : 2 seconds
- Sensitivity Nominal Load (ppm/°C) : 0.8mg
- Min-Weight (typical) (K = 2 T = 0.1% ) : 16mg
- Min-Weight (typical) (USP, K = 2 T = 1% ) : 160mg
- Min-Weight (optimal) (USP, K = 2 U = 0.1% SRP≤0.41d) : 82 mg
- Terminal Display : Microprocessor based 7" TFT 16.7M Color Hybrid Touch Screen with Glass Overlay
- Display Resolution : 800 x 480 Pixels
- Communication : USB Host (Type A) x 2, USB Device (Type C) x 1 (Transfer weight Function easy data transfer), Ethernet (RJ45) x 1, RS232 x 1; Optional Wi-Fi, Bluetooth Dongle
- Leveling System : 2 Leveling Feet with Digital Levelling Bubble
- Power Supply : AC Adapter Input: 100-240 VAC 0.5A 50-60 Hz, AC Adapter Output: 12 VDC 1.5A
- Weighing Pan Size : Square Pan 90x90mm
- Touchless Sensor : 2 Touchless Sensors on the terminal
- Draftshield with anti-static coating : Standard
- Power consumption : <1500W
- Assembled Dimensions (W x D x H) : 215mm x 400mm x 400mm
- Shipping Dimensions (W x D x H) : 415mm x 630mm x 561mm
- Software : Easy Direct Balance software
- Shipping Weight : 10.2 kg
Accessories : Oeprational and service manual, Power cord and Plug, 3 Year's warranty card.

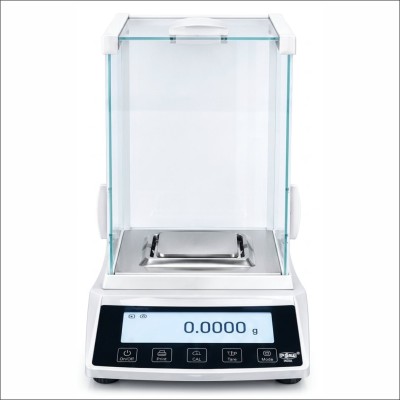

ANALYTICAL BALANCE (PSAW-224)
High-precision lab. balance for accurate, easy weighing, with simple operation, built-in applications, automatic calculations, and electronic data transfer.
- High Precision : Accurate & reliable results
- Weighing Balance : Statistical data analysis facility
- Easy Operation : User-friendly interface
- Front Level Indicator : For easy adjustment
- Metal Base & Physical : Built Top Housing
- Overload Protection : For long lasting performance
- EasyLto-clean : QuickLock Draft Shield
- Touch panel Operation : Simple & intuitive control
- Adjustable Levelling Feet : For stable and accurate weighing
