Product Information
TECHNICAL PARAMETERS:
MODEL
PSAW-4L
Max. (Capacity)
82/220g
Readability (d)
0.00001g/0.0001g (0.01mg/0.1mg)
Repeatability
0.00001g/0.0001g
Linearity (±)
0.04mg/0.4mg
Min. (Capacity)
1mg
Make
PSAW
Calibration
Motorized Internal Calibration
Class
Class I

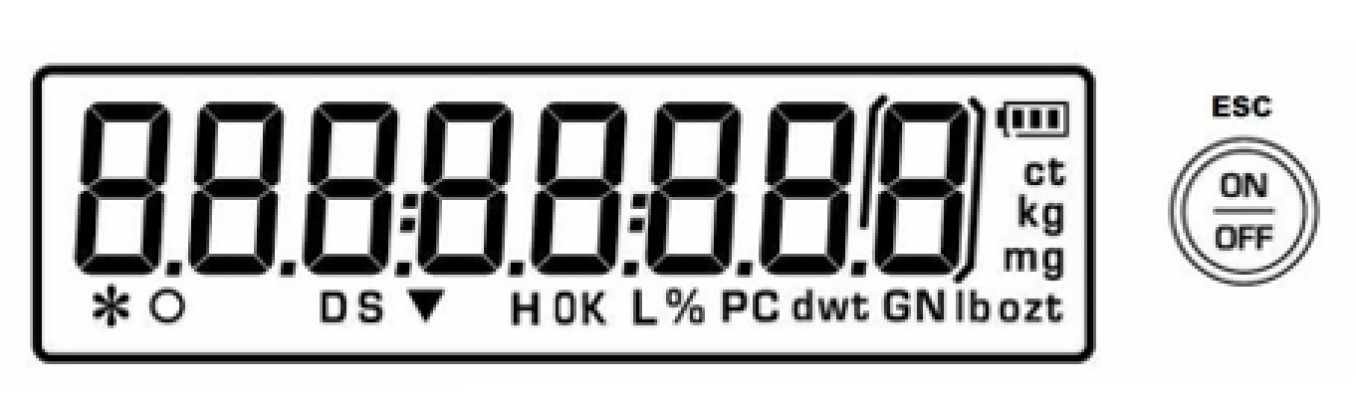

Display
White Back Light with Adjustable Contrast
Response Time
4-6 Sec

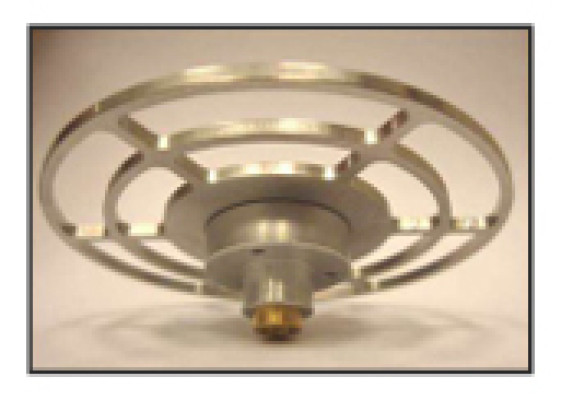

Pan Size (mm)
100 mm Ø
Tare Range
Full
Operating Temperature
+15°C to +30°C
Density
Function Available
Weighing Chamber Size
162 x 171 x 225mm
Unit
g, mg, oz, ct, lb, ozt, dwt, GN,
Application Mode
PCS,%, Weighing, Animal Weighing, Threshold Function, Density, Totalizing (Add) Weighing
Baud rate Options
1200, 2400, 4800, 9600
Interface
RS232C
Power Supply
DC24V, using AC 220V/50-60 Hz
Dimension (LxWxH)
510 x 410 x 520 mm
Gross Weight
8 Kg

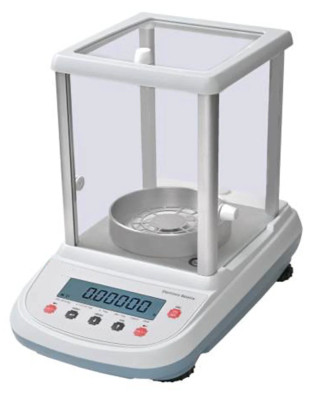

ANALYTICAL BALANCE
SALIENT FEATURES:
- Electro Magnetic Force Compensation
- Dual Range (0.01mg/0.1mg)
- User Selectable Environmental Filter
- Animal Weighing
- Automatic Internal Calibration
- Density Function
- White Back Light with Adjustable Contrast
- Piece Counting Weighing
- RS232C Interface
- Percentage Weighing
- Plastic Protection cover for Keypad
- Totalizing (Add) Function
- Multiple Weighing Units
- Threshold Function (High & Low)
- Density Determination Kit for Liquid samples (optional)
