Product Information
TECHNICAL PARAMETERS:
MODEL
PSAW-18
Type

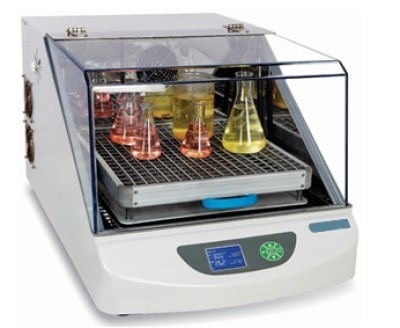

Bench-top Refrigerated Bacteriological Incubator Shaker
Shaking Speed Range
60-350 RPM (Accuracy ±2% of set value)
Construction Material
Stainless steel (inner chamber & platform) with MS powder-coated exterior
Interior Chamber
Stainless steel 304 with coved corners
Window Type
Large double-glazed toughened glass inspection window
Temp. Range
10°C to 60°C (with cooling)
Temp. Accuracy
±0.5°C @ 37°C (with Cooling) & ±0.5°C (without cooling)
Temp. Sensor
PT 100
Platform Size (mm)
420 x 420mm (Universal Platform)
Flask Capacity
12 x 250 mL, 6 x 500 mL, & 2 x 1000 mL flasks
Motor
DC Motor (Permanent Magnetic)
Drive System
Triple eccentric counter-balanced drive
Display
Digital LED Display
Controller
Microprocessor Based PID Digital LED Display temperature Controller
Overall Dimension Size (External)
570 x 702 x 815 mm (W x D x H)
Overall Dimension Size (Internal)
500 x 490 x 425 mm (W x D x H)
Orbital Dia
25 mm
Heater Power
500 W
Illuminations
LED interior illumination
Safety Features
Audio-visual alarm, over-temperature protection, door safety interlock, and motor overload protection
Power Supply
230VAC, 50 Hz, Single Phase
Weight
150 kg Approx.
Certification
CE & ISO Certified.
Warranty
3 Year's
BACTERIOLOGICAL INCUBATOR SHAKER
SALIENT FEATURES:
- Compact tabletop refrigerated bacteriological incubator shaker with inbuilt compressor, high capacity, & maintenance-free operation.
- Inner chamber and platform easy to clean.
- Triple eccentric counter-balanced drive mechanism with maintenance-free ball bearings.
- Digital LED display of temperature and RPM.
- Stackable up to 2 units using stacking stand.
- Surge protection, automatic restart after power restoration features.
- Non-volatile memory for programmed parameters.
