Product Information
Optical System: High Contrast Infinity corrected Optical System.
Observation Head: Binocular / Trinocular head inclined at 30° with Interpupillary distance of 50-75mm
Nose-piece: Inward, Quintuple revolving nose-piece ball bearing type with proper click stops
Eyepieces: Wide Field 10x eye-piece with 22mm F.O.V
Mechanical Stage: Rackless & Scrathcless Double plate stage size X/Y travel range 80mm x 60mm.
Division: 0.1mm Low drive right side movement controls. Coated surface for scratch resistance. Double specimen holder clip.
Objectives: High Contrast Infinity corrected iQVST series Plan Achromatic objectives 10x (N.A. 0.25,W.D. 6.7mm), 20x (N.A 0.4, W.D. ≥3.0mm) 40x ( N.A. 0.65, W.D. 0.6mm) and 100x (SL, Oil, N.A. 1.25, W.D. 0.17mm) antifungal, antireflection coated
Condenser: Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with Frosted white filter, antifungal & anti-reflection coated. Rack and pinion movements on stainless steel guides.
Focusing Control: Co-axial coarse and fine focusing on gear systems for smooth operation. Fine adjustment 0.2mm/rotation
Illumination: maximum of 2 micron scale increment.
Electronics: Koehler Q-LED 3.5W 3V illumination with variable control. Up to 100,000 hours of LED life.
Universal input : 110V-240V AC, 50/60 Hz.
Certificate : ISO 9001 & USFDA CertifiedAccessories:
* Lens cleaning solution : 3 bottles
* Cleaning tissue paper (100 leaves) : 6 packet

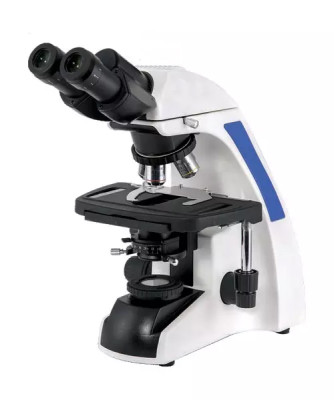

BINOCULAR BRIGHT FIELD MICROSCOPE
A binocular aluminum casting metal frame microscope is an optical instrument with two eyepieces that magnifies microscopic objects for comfortable viewing with both eyes simultaneously, reducing eye strain and improving depth perception compared to monocular (single-eyepiece) microscopes. It features multiple objective lenses for varying magnification levels, a light source for illumination, and focus knobs to sharpen the image, making it a versatile tool for scientific research, clinical diagnosis, and education.
