Product Information
Technical Parameters:
- Model : PSAW- 59/09 ( Vertical Type)
- Standard : Class II A2 Type
- Cleanliness : ISO 14644-1 ( Class 100)
- Air Flow Velocity : Nominal inflow 100±10p/min. (450 cu.ft.), Nominal down 50±5 per/min
- Inward airflow : ≥ 0.50 m/s (as per NSF ) - ≥ 0.40 m/s (EN 12469:2000)
- Cabinet Dimensions : 1000x 825 x 2450mm ( Without Stand)
- Work Area Dimensions : 900 x 600 x 600 mm ( W x D x H )
- Controller : Microprocessor LCD Colour display Controller of air velocities in real time
- Outer Body : Stainless Steel 304
- Door : Toughened Glass Sliding door of 5 mm thick.
- Work Bench Material : Stainless Steel 304 Grade (Corrosion resistant.)
- Sash Material : Made of Acrylic Clear Transparent Sheet
- Sash Opening Height : 470mm
- Supporting : Freestanding (Base stand) with 4 nos. castors & Wheels.
- Filter type : HEPA Filter 99.99% @ 0.3μm Filtration efficiency.
- Airflow Pattern : 70% Re-circulation & 30% Exhaust.
- Noise Level : <65db(A)
- Illumination : ≥ 900 lux Intensity with Programmable UV germicidal tube light.
- Safety Features : Audio & Visual Alarm for HEPA Filter Failure Facility.
- Additional Accessories : UV Lamp Separate Switch, Magnahelic Gauge, HEPA Filter, Vacuum Gas tap -1 Nos. & Online UPS 60min. Power backup and stand with Voltage Stabilizer.
- Certification : CE, and USFDA & As per 1EC 60601 Standard Certified.
- Warranty : ≥5 year’s
- Calibration Certificates : NABL Accredited Lab Approved Tested Calibration Certificate.
- Power Supply : 220 / 240VAC, AC 50/60Hz., Single Phase.
- Included Accessories : Power Cord & Plug, Warranty Card, Instructional Manual-2 Sets.

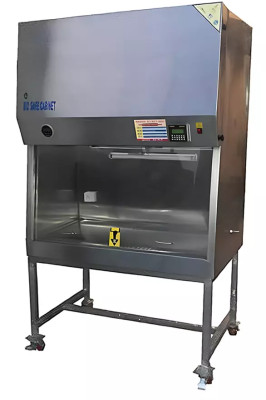

BIO SAFETY CABINET (CLASS II A2 Type) (59/09)
Description
Biological Safety Cabinets (BSCs) are designed to precisely control airflow and ventilation in order to contain and remove airborne particles generated during the routine handling of biological materials and Biological Safety Cabinets (BSCs) are equipped with UV tube lights along with optical reflectors to ensure uniform UV radiation intensity lamp across the entire work zone. Additionally, integrated white light illumination provides clear visibility during normal operations.
Salient Features:
- Microprocessor LCD Coloured Display with PID based Temp. Controller
- Audio and visual alarms for HEPA filter failure
- Freestanding with Clear, sliding front door and sash system.
- EC Fan for stable airflow during voltage fluctuations.
- Automatic Airflow adjustable.
- UV lamp exposure 5-30/min. turns OFF automatically after completion of the preset cycle.
- Air velocity down flow & inflow in real-time, the cabinet angled for clear work space.
- 14 mm Hg pressure drop indicates trans membrane or pre-fiber differential pressure.
- Pressure drop across a fiber filter (e.g., HEPA, microfiltration, or gas filter) using sensors to detect clogging or flow resistance.
- Integrated drain outlet provided below work surface.
- Biosafety Cabinet equipped with an audio & visual alarm system to indicate HEPA filter failure or airflow deviation amnd Fully integrated microprocessor-controlled visual & audible alarm system to continuously monitor critical airflow and operational parameters.
- Cabinet certified by an NSF-accredited certification body.
- Heavy-Duty Castors with wheels for easy movement and positioning.
- Chemical & disinfectant resistant surface with rust-proof & non-corrosive construction.
- Scratch-resistant, corrosion-resistant, chemical-resistant epoxy coating CRCA frame casing.
- Heavy-duty adjustable levelling jacks at base.
- Biosafety Cabinet Smooth-finish interior and exterior surfaces to ensure easy cleaning
- Integrated locking system provided for secure cabinet closure.
- Automatic blower speed compensation system.
- Timing Accuracy:5-10min or better over the full operating range.
