Product Information
TECHNICAL SPECIFICATIONS:
Model
: Bio Safety Cabinet ( Vertical Type Class II Type A2)
Display
: Microprocessor Controlled LED Display
Air Circulation
: 70% Air Re-circulation and 30% Air Exhausted ( Inside the Work Area)
Exterior Cabinet Material
: Epoxy powder-Coated Cold-rolled Steel, resistant to acid & alkali corrosion.
Inner Chamber Material
: Removable SS 304 Work Surface, Screw-free design.
Front Inclination
: Cabinet Front Inclined @ 10°.
Inner Chamber Dimensions
: 120 x 60 x 60 CM ( W x D x H) Suitable Sash opening
Drain Pan Material
: SS 304 Drain pan with spill trough and drain valve.(unpainted and uncoated.)
Lighting Illumination
: LED
Airflow Velocity
: Downflow 0.35 (± 0.05m/s) & Inflow 0.53 (± 0.03m/s) Across the work opening.
Display
: Real-time Display of downflow velocity, inflow velocity, Airflow volume, Fan runtime, UV lamp runtime, & Filter life status.
Motor Type
: Energy-Efficient DC motor.
HEPA & Exhaust Filter
: Filter Efficiency ≥ 99.99% at 0.3 µm
Castor Wheels
: 4 Nos. Castor with Wheels with lock for easy movement
Timer Function
: Programmable timed ON/OFF operation.
UV Sterilization
: Programmable UV lamp for preset sterilization cycles before operation.
Sash Alarm
: Audible Alarm Sash.
Noise level
: <65 dBa.
UV Lamp
: Programmable UV Sterilization Timer Adjustable 0–24 hrs.
Fitted Outlet
: Universal Gas Taps & Air Service fittings provided.
Electrical Sockets
: Integrated 5A/15A Electrical Sockets & Control Switches.
Power Supply
: 220/230V AC 50/60Hz. , Single Phase.
Warranty
: 2 Year’s.
Certification
: CE Certified ( listing on the NSF website)
Qualification
: IQ/OQ/PQ to be Performed Free of cost, wherever applicable. OQ Validation Particle Count & DOP tests and ISO Class 5 (Class 100) Cleanliness.
Calibration
: NABL-Accredited Calibration Certificate (e.g., Airflow Velocity, Noise level).
Included Accessories
: Complete Operation & User Instruction Manual.

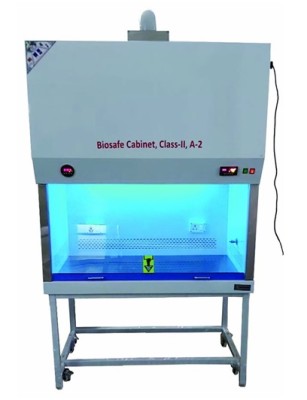

Bio Safety Cabinet (Class II Type A2)
Salient Features:
- Microprocessor Temp. Controller
- LED illumination provided for chamber lighting.
- Displays performance parameters for Safe Operating Confirmation
- Real-time display of Down-Flow & in-Flow Air Velocities
- Direction of Flow of Air inside the cabinet .
- Audible and visual alarms for abnormal operating conditions.
- Stainless Steel Drain pan with angled Sides, Smooth Surface for Easy Cleaning.
- Concave Front panel design for Enhanced operator comfort & Ergonomics.
- Inner Chamber Seamless One-piece Stainless Steel Construction, easy to clean.
- Ergonomic Armrest for operator comfort.
- Pressure Sensor for supply filter pressure-drop monitoring.
- Automatic airflow adjustment without dampers, ensuring stable and safe operating conditions
- Vertical sliding front sash made of toughened tempered glass.
