Product Information
Technical Parameters:
- Cabinet Type : Class II, Type A2
- Size : 3'x2'x2'
- Configuration : Freestanding, Floor Mounted
- Airflow Direction : Vertical Laminar Flow
- Velocity : 50 ±5 FPM
- Maximum Sash Opening : 460–470 mm
- Inflow Velocity : 100 ±10 FPM (@ 450 CFM)
- Airflow Pattern : 70% Recirculated through HEPA Filter 30% Exhausted
- Pressure drop : 13–14 mm Hg (pre-filter)
- Working Area Material : Stainless Steel 304
- Controller : Microprocessor Control
- Cabinet Interior : Stainless Steel 304
- HEPA Efficiency : 99.99% for 0.3 micron
- Casing : Epoxy Coated CRCA Frame
- Illumination : ≥ 900 Lux
- Light : UV tubes lights with optical reflectors
- UV Sterilization : Germicidal UV Tube
- Noise Level : ≤ 65 dB
- Display Type : LCD
- Front Door : Toughened Sliding Glass
- UV Timer Control : Adjustable 5–30 minutes
- Additional Timer Option : 5–10 minutes
- Power Supply : 230 ±10 V, 50 Hz
ACCESSORIES:
- Power cable and Plug
- Instruction Manual
- Warranty Certificate
- UV Lamp
- Castors
- Magnehelic Gauge
- HEPA Filter
- Gas Burner

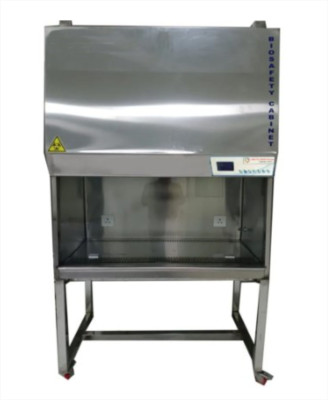

BIO-SAFETY CABINET
A Biosafety Cabinet ventilated laboratory workstation designed to protect personnel, products, and the environment from harmful aerosols and contaminants. It uses laminar airflow and HEPA filters to create a sterile environment for handling pathogens.
Features:
- Automatic Airflow Adjustment
- Auto Speed Increase on Sash Opening
- Audio & Visual HEPA Failure Alarm
- Smooth, corrosion-proof interior & exterior
- Drain Outlet with Flexible Hose
- Taps for Vacuum, Water & Non-combustible Gas
- Provided with pre Filter
- Locking Facility
- Provided Levelling Jacks
- Removable shelves for storage
- Full-length hanging space provision
