Product Information
TECHNICAL SPECIFICATIONS:
- Model : Bio Safety Class II, Type A2 ( Vertical type Freestanding)
- Display Panel : Microprocessor Based LCD Digital real time Display Controller
- Inner Work Surface Material : Stainless Steel (SS 304 )
- Cabinet Material : Stainless Steel (SS 304) with Casing Epoxy Coated CRCA Frame
- Inflow Velocity : Air volume @450 Cube Feet 100 (±10) /min
- Down Flow Velocity : 50 ± 5'/min
- Airflow Pattern : 70% Re Circulated HEPA filter, 30% Exhausted
- Automatic Airflow : Yes
- Inward Airflow velocity : ≥0.50 m/s ( NSF Standard)
- Monitoring System : Pressure Monitoring
- Pressure Drop : 13–14mm Hg
- Lighting : Sterilization UV Germicidal Tube
- UV Lamp : Separate ON/OFF UV Lamp Switch
- UV Exposure Timer : 5–30 min ( Programmable)
- Working Surface Light : White LED illumination with optical reflectors
- Illumination : ≥900 Lux
- Pre Filter : Yes
- HEPA Filter Efficiency : 99.99% Efficiency @ 0.3µm particles
- Noise Level : ≤65 dB
- Inner Dimensions : 3' x 2' x 2' ( W x D x H)
- Front Sash : Clear, Toughened sliding door (5mm thick) opening Height 47CM
- UV Lamp Control : Separate Switch
- Air Speed Increase : Automatic with Adjustable maintained velocity
- UV Timer Range : 5–10 min. (quick cycle)
- Safety Features : Audio & Visual Alarm (HEPA Filter Failure) low exhaust flow, low down flow air velocity, exhaust fan malfunction, and sash not in right position.
- Drain Outlet : Flexible Hose
- Utility Options : Vacuum and Water Taps & Non-Combustible Gas Taps
- Accessories : Magnehelic Gauge, HEPA Filter, UV Lamp, Gas Burner Each 1 Set
- Standards : NABL Accredited Lab Approved Calibration Standard
- Air Cleanliness : ISO 14644-1 & 14644-2, Class 100
- Safety Standard : IEC 61010-1 and NSF ( BSC Class II A2)
- Quality Certifications : ISO 9001 & ISO 13485 CE, USFDA Certified and Test Reports
- Additional Accessories : UPS and Voltage Stabilizer ( 60min. withstand)
- Documentation : Instructional Manual English Hard Copy & Soft Copy
- Power Supply : 230V ±10%, 50 Hz AC
- Warranty : 5 Year’s

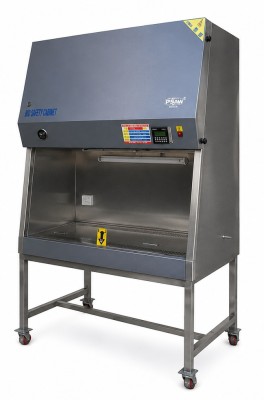

BIOSAFETY CABINET (59/10)
KEY FEATURES:
- PERSONNEL PROTECTION - Protects users from exposure to hazardous agents.
- PRODUCT PROTECTION - Maintains a sterile environment to protect samples.
- ENVIRONMENT PROTECTION - HEPA filtration prevents contamination of the laboratory.
- HEPA FILTER TECHNOLOGY - High-efficiency filters ensure clean, contaminant-free air.
- ENERGY EFFICIENT - Optimized airflow with low noise and power consumption.
- Real-Time Digital LCD Display of inflow and Downflow Velocities.
- Automatic energy-saving Standby mode when sash is closed.
- Smooth Interior and Exterior Corrosion-Resistant, Seamless, Easy clean.
- Castors with Wheels Facility.
- Leveling Jack with Lock Facility.
