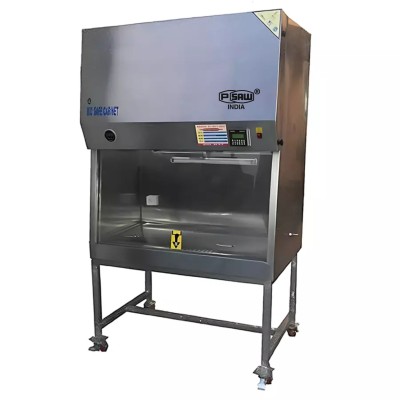

BIOSAFETY CABINET
Model No: PSAW-59-10
SALIENT FEATURES:
- Smooth interior and exterior surfaces with powder-coated with seamless rounded corners to facilitate cleaning and prevent injury.
- Ergonomically inclined front panel at Approx. 10° to reduce glare and operator fatigue.
- Front window easily accessible for cleaning without requiring removal or manual support.
- Automatic airlow adjustment system to maintain safe operating conditions throughout ilter life.
- Automatic balancing of downlow and exhaust airlow for continuous protection of user, product, and environment.
- Airlow monitoring based on a pressure sensor measuring pressure drop across the supply HEPA ilter, rather than a single-point anemometer.
- Real-time display of Downlow velocity, Inlow velocity, cabinet status & Operating hours.
- Audible alarm activate if the sash is raised above the recommended operating height.
- Automatic reduction of blower speed to 30% when sash is fully closed.
- Programmable UV germicidal lamp with selectable exposure times from 30 minutes to 24 hours.
- Audible and visual alarms for HEPA ilter failure, blower failure, airlow failure, incorrect sash position, and unsafe operating conditions.
Product Information
TECHNICAL PARAMETERS:
- Model : PSAW-59-10
- Cabinet Type : Class II Type A2
- Work Surface : stainless steel 304
- Exterior Dimensions : 1600 × 750 × 1500 mm (HxWxD)
- Interior Working Area : 1500 × 600 × 700 mm (HxWxD)
- Front Sash Opening : 8–10 inches
- Motor : DC motor (2 Nos.)
- Controller : Microprocessor-based digital controller with large LED display
- Air Circulation : 70% recirculated air and 30% exhausted air
- Ventilation Capacity : Exhaust/Inlow air volume 300–350 CFM Approx.
- Noise Level : ≤ 65 dB(A)
- Safety Device : Audible and visual alarms
- HEPA Filter : H14 HEPA ilter conforming to EN 1822
- HEPA Efficiency : 99.995% at 0.3 μm particle size
- Heat Emission : ≤ 0.2 kW at 25°C
- UV Sterilization : Programmable UV lamp with timer adjustable
- Electrical Supply : 220–240 V AC, 50 Hz, single phase
- Standard Accessories : Adjustable height stand, UV lamp, detachable armrests (1 set), voltage stabilizer, user manual, and power cord.
- Certification : CE and FDA certified
