Product Information
Technical Parameters:
- Exterior dimensions : H x W x D 1500 x 1300 x 800mm
- Interior dimensions : H x W x D 800 x 1200 x 500mm
- Air Re Circulation : 70% Air re-circulated & 30% Air Exhausted.
- Airflow System : Vertical laminar airflow design
- HEPA Filter Standards : Class H14 as per EN 1822 Standard
- HEPA Filter Effieciency : 99.995% For Particles 0.3µm
- Air Ventilation System : 300-350CFM ( Exhaust and inflow Air volume)
- Noise Level : <63dBa
- Lighting : UV Lighting Illumination 0-24 Hrs.
- Exterior Material : Mild Steel with Epoxy Powder Coated.
- Display : Microprocessor 7" Touch Screen Controller with Interface
- Front Viewing Window : 10" Vertical sash laminated safety glass
- Cabinet Designed : 10° Angled Front profile to minimize glare & reflection
- Motors : Two Independent DC Motor with Not Single Motor with Dual Fans
- Surface Area : Cabinet, measured Sound-proof room distance 12" ( 4 Feet Cabinet Measured) Front Cabinet 15" above the work surface.
- Internal Chamber Material : Stainless Steel 304
- Operating Speed Power Rating : <200Watts
- Fitted Accessories : Vacuum Water and Non Combustible Gas Tap,
- Safety Features : Audible & Visual Alarm HEPA Filter, Blower, Airflow Speed Failure & Window Incorrect Position.
- Additional Accessories : Adjustable Height Stand, UV Light and One Set detachable arm rest, Electrical Fuse- 2 Nos, Stainless Steel Drain Pan, Instructional Manual, Warranty Card, Power Cord and Plug.
- Certification : NSF, CE Certified.
- Warranty : 3 Year’s

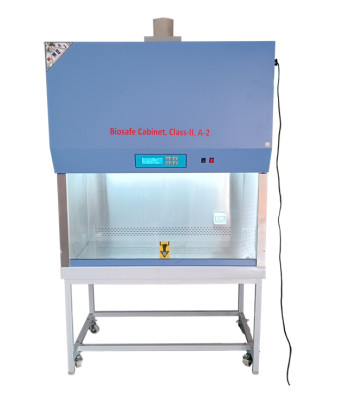

BIO SAFETY CABINET (59-07)
Salient Features:
- Bio-safety Cabinet designed to allow complete access to the interior surface of the front window for routine cleaning & maintenance without requiring removal, dismantling, or manual support of the window assembly, ensuring user safety, convenience, & ease of decontamination.
- Bio safety Cabinet designed with dual side walls incorporating a negatively pressurized interstitial space to ensure enhanced operator, product, & environmental safety.
- Biological Safety Cabinet ( BSC) incorporate advanced energy-efficient design conforming to current state-of-the-art technology standards.
- Cabinet power Consumption without compromising containment performance or operator safety.
- Equipped with an Automatic energy-saving function.
- Automatically reduces to approximately 30% when the front window sash is fully closed, Ensuring minimum energy consumption.
- Reduced noise levels, & extended component life when the cabinet is not in operation.
- Cabinet Automatically alert the user whenever airflow values deviate from NSF inflow & down flow air velocity limits.
