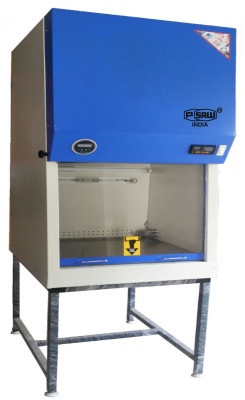

BIO SAFETY CABINET
Model No: PSAW-59-07
Salient Features:
- Auto moves front window to safe working position and interlocked during operation.
- Sash Safety glass for easy cleaning with integrated UVC protection.
- HEPA ilters for downlow and exhaust compliant with EN 1822.
- Real-time monitoring of inlow and downlow air velocity.
- DC fan (Dual) with separate downlow and exhaust fans.
- Independent control Downlow and exhaust fans auto. compensate for HEPA ilter loading.
- Stops downlow fan when continue operating of Exhaust fan; stop supply fan if exhaust fan fails.
- Display of performance parameters with pressure sensors, alarm system, and alerts for HEPA Filter replacement or routine service.
- Auto reduces Speed Fan motor to <40% when front sash is closed to reduce energy consumption.
- UV light for decontamination with emission wavelength 250 nm.
- USB port for downloading performance and operational data with connectivity option.
Product Information
Technical Parameter
- Model : PSAW- 59-07
- Construction (Interior) : SS 304
- Construction (Exterior) : SS 304
- Working Area Material : Powder-coated cold rolled steel (Thickness- 1mm)
- Front Window : Multi-layer safety glass (Hinged upward)
- Front window operation : Motor-driven
- Operation Mode : Auto start and stop programming
- Sash Opening : 200 mm
- Exhaust Volume : Min. 380 m³/hr @ 200 mm
- Internal Dimensions : 750 x 600 x 1200 mm ( H x D x W ).
- Display Type : Touch keypad GUI display
- Filter Type : HEPA Filter (H14)
- Inlow Velocity : 0.50 m/s (100 fpm) Approx.
- Downlow Velocity : 0.28 m/s (60 fpm) Approx.
- Filtration Efficiency : ≥ 99.999% at 0.3 µm
- Connectivity : UV Port
- UV system : Microprocessor controlled UV light
- Wavelength : 250 nm
- Illumination : Internal light intensity
- Light Intensity : ≥ 1500 lux`
- Noise Level : ≤55db, ±5 dB(A)
- Security feature : Passcode protection
- Power Supply : 230 V AC, ±10V, 50Hz.
- Power Consumption : 150 W, ±5 W
- Stand : Fixed-height stand (Powder coated cold rolled steel)
