Qualitative Analysis & Mineralogy ApparatusBlow Pipe
Precision Nickel-Plated Brass Laboratory Mouth Blowpipe Featuring Tapered Jet Nozzle and Moisture-Trap Air Chamber Bulb for Flame Tests, Charcoal Block Reductions, and Mineral Identification.
Heavy-Gauge Seamless Brass Integrated Moisture Chamber Bulb Precision Tapered Jet Tip Standard 200 mm – 250 mm LengthsWhat is a Laboratory Blow Pipe?
A Blow Pipe (also known as a laboratory mouth blowpipe or flame test blowpipe) is a slender, tapered metallic tube engineered to direct a steady, concentrated stream of air into a Bunsen burner or alcohol lamp flame. By controlling air placement within the flame, chemists, geologists, and students produce localized oxidizing or reducing micro-flames used for charcoal block reductions, borax bead tests, and qualitative mineral and metallic salt identification.
1. Key Features & Engineering Advantages
Integrated Air & Moisture Bulb
Features an expanded cylindrical reservoir near the nozzle bend that stabilizes airflow pressure and traps exhaled condensation moisture.
Precision Fine-Orifice Nozzle
Tapered brass jet tip delivers a sharp, laminar air jet capable of generating intense, pinpoint reducing and oxidizing flame zones.
Corrosion-Resistant Nickel Plating
Constructed from heavy-gauge seamless brass tubing with a smooth nickel-plated finish that resists heat tarnishing and acidic lab vapors.
Ergonomic Flared Mouthpiece
Smoothly rolled mouthpiece rim ensures comfortable, fatigue-free continuous blowing during extended qualitative analysis practicals.
2. Technical Matrix & Detailed Overview
Parameter Specification Details Product Name Blow Pipe (Laboratory Brass Mouth Blowpipe) Body Material Seamless Heavy-Gauge Brass with Bright Nickel Plating Standard Lengths 200 mm (8 Inches) and 250 mm (10 Inches) Air Reservoir Cylindrical Moisture-Trap Bulb near 90-Degree Jet Bend Jet Nozzle Tip Precision-Drilled Fine Pin-Hole Brass Orifice (Removable / Fixed) Compatible Burners Bunsen Burners, Spirit Alcohol Lamps, & Meker Burners Applications Chemistry Salt Analysis, Mineralogy, Geology, & Assaying Labs Essential Tool for Qualitative Salt & Mineral Analysis
The Blow Pipe remains a foundational analytical instrument across inorganic chemistry, geology, and metallurgy laboratories. By directing a focused stream of air into a luminous burner flame, this laboratory blowpipe allows students and mineralogists to perform rapid dry-way tests—including charcoal cavity reductions, cobalt nitrate tests, and borax bead colorations—to identify metallic cations and ore compositions accurately.
Precision Airflow & Condensation Control
Engineered from seamless drawn brass tubing, each brass mouth blowpipe incorporates a specialized cylindrical air chamber near the right-angled nozzle bend. This reservoir equalizes cheek-pressure fluctuations into a continuous laminar jet while condensing breath moisture before it reaches the flame, preventing sputtering during delicate flame test blowpipe procedures.
Institutional Durability for Academic & Field Use
Manufactured to endure frequent sterilization and high-temperature proximity, every mineral analysis blowpipe features a smoothly finished mouthpiece and a precision-bored brass jet tip. Universities, mining training institutes, and global laboratory distributors rely on our blowpipes for consistent thermal performance and bulk institutional value.
Direct Manufacturer Quotation & Bulk Orders
Contact for institutional pricing, charcoal block combo kits, and global export catalogues.
3. Flame Test & Charcoal Reduction Protocol
Step 01Flame Adjustment
Close the air collar of a Bunsen burner slightly to produce a steady, luminous yellow flame roughly 3 to 4 cm high.
Step 02Nozzle Positioning
Rest the tapered brass jet tip just inside the edge of the flame for an oxidizing flame, or just outside for a reducing flame.
Step 03Steady Air Delivery
Maintain continuous air pressure using cheek muscles while breathing smoothly through the nose to produce a blue cone.
Step 04Specimen Heating
Direct the pointed flame tip onto the mineral sample in a charcoal cavity or platinum wire loop and observe incandescence or bead color.
4. Frequently Asked Questions (FAQs)
Q1: Why does a laboratory blowpipe have a bulb near the bent nozzle?
The cylindrical bulb serves two functions: it acts as a pressure buffer to keep the air jet steady and traps condensed breath moisture so water droplets do not sputter into the flame.
Q2: How do you produce an oxidizing vs. reducing flame with a blowpipe?
Place the nozzle tip slightly inside the flame and blow gently to create a blue, pointed oxidizing flame; hold the tip just outside the flame edge and blow gently to produce a yellow-tipped reducing flame.
Q3: What material is used to manufacture these laboratory blowpipes?
They are crafted from heavy-gauge seamless brass tubing with a bright nickel-plated exterior for heat durability, corrosion resistance, and easy hygiene cleaning.
Q4: Are charcoal blocks and platinum loops also supplied alongside blowpipes?
Yes. We supply complete qualitative dry-test accessories including compressed charcoal blocks, borax flux, platinum wire loops, and cobalt blue glass plates for institutional orders.
5. Domestic Supply & Global Export Hubs
Domestic Indian Network
Delhi NCR Maharashtra Uttar Pradesh Karnataka Tamil Nadu Gujarat West BengalNorth & South America
United States (USA) Canada Mexico BrazilEurope & United Kingdom
United Kingdom (UK) Germany FranceMiddle East & Gulf (GCC)
UAE Saudi Arabia Oman Qatar Kuwait

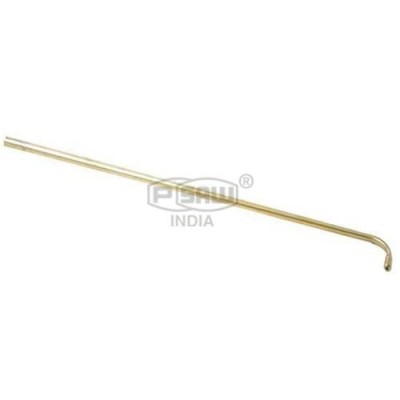

Blow Pipe
Nickel Plated, Brass with Curved end, Used with Charcoal Block
