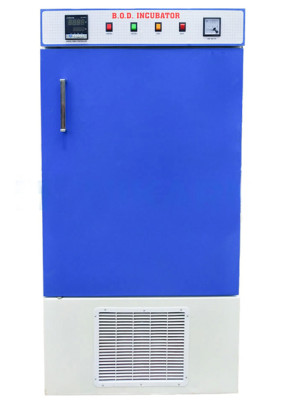

BOD INCUBATOR (109/A)
BOD INCUBATOR (109/A)
Model No: PSAW-109/A
KEY FEATURES:
- Double walled Construction.
- Outer body Made of M.S. sheet with Epoxy powder coating.
- High-grade Thermal Insulation between Inner & Outer Walls.
- Forced Air Circulation system with 2 Internal Fans for uniform temp.
- Digital PID Temp. Indicator Cum Controller.
Product Information
TECHNICAL PARAMETERS
- Model : BOD Incubator
- Chamber Capacity : 112 Litres
- Inner Chamber Material : Stainless Steel Grade 304
- Inner Door : ( 5mm Thickness) Frameless Tempered Safety Glass Door
- Heating System : Quartz tube Enclosed Heaters Safe & Uniform Heating
- Shelves : 3 Nos. SS Adjustable & Removable Wire mesh Shelves ( 25 mm)
- Chamber Design : Seamless Rounded Corners easy cleaning
- Controller Position : Eye-level Door Mounted Controller
- Air Circulation : Internal Fan
- Temp. Controller : Microprocessor Based PID with Digital LED Controller
- Temp. Sensor : PT 100 Sensor
- Controller Features : Timer with bypass, Auto Tuning & Alarm Functions
- Display : Seven Segment LED
- Temp. Range : Display Ambient +5°C to 70°C ( Controlled Accuracy ±0.5°C )
- Safety Protection : Independent user-set over-temp. safety
- Communication Port : RS-485 Interface
- Power Supply : 230 V AC, 50 Hz, Single Phase
- Certification : CE Certified
- Calibration : NABL traceable calibration certificate
- Quality Certification : ISO 13485 & ISO 9001:2015 certified
- Warranty : 3 Year’s
