Product Information
TECHNICAL SPECIFICATIONS:
- Model : BOD Incubator ( Floor Standing Model)
- Volume Capacity :150 Litres
- Interior Dimension : 500 x 500 x 600mm ( W xD x H )
- Temp. Range : 5 to 50°C
- Operating Temp. Range : 5 to 40°C ( Relative Humidity 70%)
- Door : Double Walled and Transparent Tempered glass door.
- Temp. Accuracy : ±0.5°C
- Temp. Uniformity : ±1.5°C
- Shelves Load Capacity : Each Shelves 10 kg Max.
- Display : 4" Touch LCD Display
- Shelf Material : 3 Nos. Adjustable & Removable ( PE Coated) Shelves.
- Inner Construction : Stainless Steel (304 grade) Chamber
- External Body Material : Powder Coated Steel
- Insulation Material : High Grade Glass wool
- Heating System : Efficient Heating Element
- Mobility : Heavy Duty 4 Nos. Locking Casters with Wheels
- Refrigeration : CFC-Free Refrigeration System.
- Cooling System : Intelligent Compressor Control with Overload protection.
- Air Flow : Forced Air Circulation uniform temp. Distribution.
- Operation Timer : Continuous for 99hr programmable timer with Elapsed, remaining, & total time display.
- Temp. Sensor : PT 100 Sensors
- Controller : Microprocessor-based PID Controller programmable temp. profile.
- Data Recording : Automatic temp. Data logging with Elapsed time.
- Communication Port : RS 232 Interface for PC Connectivity, Remote Monitoring, & Data Transfer.
- Safety Features : Over Temp. ( under temp. ) and Over Current through Sensor detection. ( Circuit breaker Cut off )
- Power Supply : 230VAC, 50/60 Hz. Single Phase
- Software Features : User Friendly For Test Setup, Storage and Recording Temp., time and Data
- Chamber Darkness : Provision for Ensuring Complete darkness inside the incubator during testing.
- Included : Operating and Instructional Manual, 1 Year Warranty Card, Power Cord and Plug

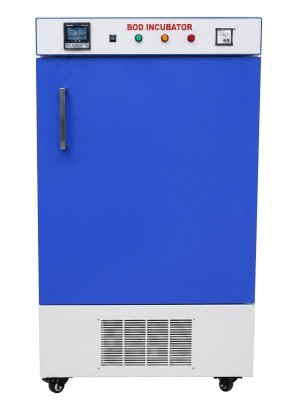

BOD INCUBATOR (FLOOR MOUNTED)
KEY FEATURES:
- Designed for Micro-Biological Testing of Aviation Turbine Fuel Samples.
- Temp. range suitable for BOD & microbiological incubation applications.
- Microprocessor-based PID temperature controller for precise control.
- Forced-Air circulation for Excellent temp. uniformity.
- CFC-free refrigeration system with intelligent compressor protection.
- High-quality SS 304 stainless steel inner chamber.
- Full Touch Screen LCD display for easy operation and monitoring.
- Automatic temperature data logging with programmable timer.
- RS-232 communication interface for PC connectivity & data transfer.
- Audio-visual alarm for over-temp. & Sensor failure.
- NABL-traceable temp. accuracy & uniformity Calibration
- @ 5°C, 10°C, 20°C, 25°C, 30°C, 40°C & 50°C.
