Product Information
Technical Specifications:
- Design : Stackable
- Inner Material : Stainless steel 304
- External Material : Mild Steel with powder-coated finish
- Outer Door Material : Stainless steel 304 (Insulated)
- Inner Door Material : Tempered glass door
- Internal Configuration : Stainless steel shelves (2 adjustable)
- Chamber Capacity : 80 Litres (Approx.)
- Temperature Range : Ambient +20°C to +70°C
- Temperature Fluctuation : ±0.3°C (25°C at set point)
- Temperature Sensor : Pt100
- Setting resolution : 0.1°C
- Display : High-resolution TFT display
- Data Interface : USB interface
- Programmability : Multi-step programmable Operation
- Electrical Requirements : 230 V ±10%, 50 Hz AC supply.
- Technology : Energy-efficient Peltier-based heating and cooling
- Safety Features : Independent electronic over-temperature protection, Audible and visual over-temperature alarm, Temperature safety device compliant with DIN 12880.
- Accessories : SS shelves (3 Nos.), User Manual

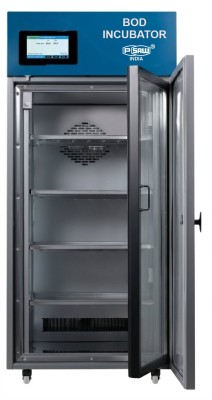

B.O.D. INCUBATOR (PSAW-109)
Salient Features:
- Cabinet smooth and easy to clean.
- Temperature display in °C.
- USB Port for data transfer.
- Setpoint wait function.
- Storage of user-defined programs.
- Compressor-free cooling system.
- Precise temperature control with high stability and uniformity.
- Temperature sensor for precise temperature measurement and control.
- Programmable temperature profiles with ramp, soak and cyclic functions.
- Additional independent temperature sensors for monitoring and verification.
- Integrated digital timer with delayed start and setpoint-dependent operation.
