Product Information
TECHNICAL PARAMETERS:
- Measuring light : Blue, 445 nm; modulation frequency: 5-25 Hz.
- Far-red light : 745 nm, for measurement of Fo' (initial fluorescence).
- Saturation pulse intensity : ≥6500 µmol m²s'.
- PAR light : 50-1500 µmol ms', user adjustable or better.
- Parameters : Ft, Fo, Fm, F, Fo', Fm', Fv/Fm, Y(II), qL, qP, qN, NPQ, Y(NPQ), Y(NO), ETR, etc.
- Signal Detection : PIN photodiode protected detector.
- Accessories : Portable laptop Intel Core Ultra 7/equivalent, 16 GB RAM, 512 GB SSD Software operation and data storage. Leaf Clips 10 Nos. and Chlorophyll Fluorometer, 60cm Fiber optic cable, Instructional manual, software and USB Cable, etc.
- Warranty : 2 year's

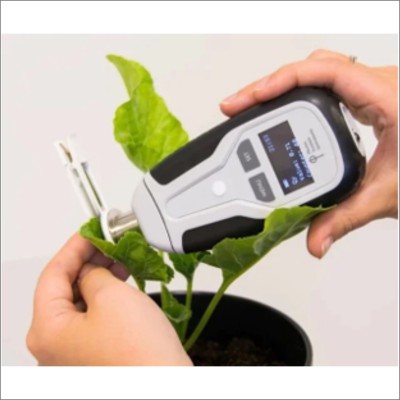

CHLOROPHYLL FLUORESCENE METER
FEATURES:
- Light-curve fitting routines for determination of a, Ik & ETR with programmable measurement time & intervals.
- Pulsed Amplitude Modulated (PAM) fluorometry for measurement of Photosystem-II (PS-II) Activity.
- Suitable Chlorophyll fluorescence of measuring parameters from 3 mm leaf width.
- Fiber-optic probe for measurement of chlorophyll fluorescence parameters.
- USB powered system with free automatic software upgrades.
- Fully programmable batch-file language for automatic measurements at intervals such as 5 min
