Product Information
Technical Parameters:
Volume Capacity
165 liters
Temp. Range
Ambient 3°C to 55°C (0.1°C Resolution)
Inner Chamber Material
High-grade Stainless steel 304 Grade (Smooth, Easy-to-clean)
Exterior Material
Cold-Rolled Steel (Powder-Coated)
Exterior Dimensions
637 x 900 x 880mm (W x H x D)
Interior Dimensions
470 x 607 x 576mm (WxHxD)
Front Panel Display
Full-length Handle
Temp. Control
+0.1°C.
Temp. Uniformity
<±0.3°C.
Display
Large 7" Touchscreen Color Display. temp. monitoring, control, & alarm indication.
Chamber Uniformity
±0.4°C at 37°C
Sterilization Cycle temp.
180°C (<12 hrs.)
CO2 Range
1-20%
Control Accuracy.
+0.1%
Inlet Pressure Range
15 PSI (0.8-1.0 Bar), O2 Gas purity 99.5%
CO, inlet Connection
1/8" Hose
Shelves Load Capacity
Each Shelves 10Kg Approx.
Shelves
423 x 465mm SS 3Nos. -11Nos. Option Shelves (Adjustable & Perforated)
Power Supply
230V ±10%, AC 50Hz
Warranty
6 Year's.
Includes Accessories
Instructional Manual, Warranty Card, Power Cord and Plug

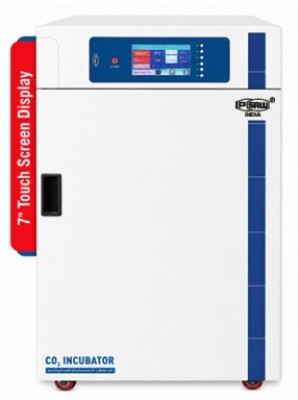

CO2 INCUBATOR (PSAW-165)
Salient Features:
- Third-party proof of Effectiveness.
- Direct Air-jacketed Heating Design Featuring High-quality Thermal Jacket insulation.
- Fan Assists Air Circulation to deliver rapid recovery of temp., CO2 & Relative humidity within 10 min. (30-sec.) Door opening.
- Restores all climate parameters within 10 min. of a 30-sec. Door opening.
- Fast humidity Recovery prevents Media Evaporation, protecting cells from Drying out.
- Integrated, Covered Humidity Reservoir Delivers High humidity levels & prevents internal Chamber Condensation.
- Equipped with a water level sensor & Audible alarm to alert users when a humidification water refill.
- Humidity reservoir refillable without removing shelves or cultures and include a built-in copper drain for easy drainage.
- All sensors chamber-mounted for Accurate Monitoring & rapid parameter recovery.
- Independent over-temp. protection with backup sensor for culture safety.
- Single-beam, Dual-wavelength IR180Si silicon bulb-less IR CO? sensor.
- IR180Si sensor remain in place during the 180°C Sterilization Cycle.
- CO? recovery to Setpoint within ?4.5 min after 30-sec. door opening.
- In-chamber HEPA Filtration Contamination Control with Full Air Recirculation every 60 sec.
- Maintains ISO Class 5 Air quality within 5 min. 30-sec door opening.
- Integrated gas inlet(s) & USB port.
- Microbiological Filters on all gas ports ( inlet, outlet, & Sampling).
- USB port with Software for Excel-Compatible Data download & reporting.
- CSA certified & CE marked for quality, safety, and performance Compliance.
