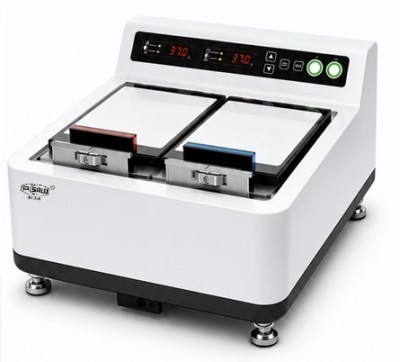

CO2 IVF INCUBATOR (BENCH TOP)

TECHNICAL PARAMETERS:

• Equipment Type : Compact bench-top humidified Mixed gas incubator.
• Application : Designed to maintain an optimal Environment for oocyte and embryo development.
• Chamber Design : Two independent Culture Chambers separate lids for oocyte and embryo culture.
• Heating System : Direct Dish Heating Chamber with independent Temp. Control for each chamber & heated base & lid for uniform temp. distribution.
• Chamber Capacity 4x60mm and 10x30mm Petri dishes, 4 Standard (Four-well) Culture Dishes.
• Gas Recovery : Automatic Gas purge on lid closure with Rapid recovery of Gas Concentration After lid opening.
• Lid Mechanism : Soft-close lid with Ergonomic twist-lock Access system.
• Humidification : Integrated disposable Humidification flask with System.
• Alarm System : Time-Stamped Audible/visual alarm notifications with event description.
• Data Display : Graphical display For comprehensive review of operating parameters.
• Temperature Range : Ambient +5°C to 40°C.
• Operating Humidity : 5% to 90% (RH).
• Temp. Accuracy : ±0.2°C.
• Temp. Resolution : ±0.1°C.
• Gas Requirement : CO2/O2/N2 premixed gas at inlet pressure of 150 kPa.
• Validation Ports : Independent PT100 validation ports for temp. verification.
• Connectivity : IP Capability for Remote monitoring.
• Power Backup : Battery backup for 2 hrs.
• Gas Supply : Compatible with pre-mixed CO2/O2/N? gas. Multiple incubators connectable to a single gas source.
• Accessories : Two (2) Dual-stage Regulators For Tri-Gas cylinders.
• Gas Filtration : In-line gas line filter.
• Data Logging : 24-hr Digital recording of temp. & gas flow parameters.
• Installation Kit : Complete Disconnect with Fittings kit
• Power Supply : Universal 100-240 VAC, 50/60 Hz.
• Safety Standards : IEC standards Certified.
• Warranty : 2 year's
