COMPRESSION TESTING MACHINE 100 KN

Home COMPRESSION TESTING MACHINE 100 KN
COMPRESSION TESTING MACHINE 100 KN|PSAW

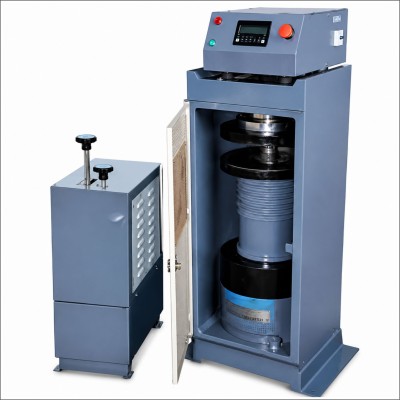

COMPRESSION TESTING MACHINE 100 KN

Model No: PSAW-042A

Features:

  • Suitable overload and over-travel protection.
  • servo-controlled loading system.
  • Real-time display of load, stress, loading rate and test status.
  • User-friendly keypad operation.
  • Internal memory for storing Min. 100 test results.
  • Password-protected user settings preferred.
Enquire Now

Product Information

Machine Construction:

  • Four-column high-rigidity loading frame.
  • Heavy-duty compression frame designed for long service life.
  • Hardened steel upper and lower platens with self-aligning (spherical seat) arrangement.
  • Platen hardness (50 HRC).
  • Flatness of platen



Technical Specifications:

  • Capacity - 100 kN
  • Accuracy - ±1%
  • Resolution - 0.1 kN
  • Loading System - Servo-controlled
  • Platen Diameter - 120 mm
  • Vertical Clearance - 220 mm
  • Horizontal Clearance - 220 mm
  • Ram Travel - 50 mm
  • Motor - Suitable heavy-duty motor
  • Pump - Motorized hydraulic pump
  • Reading - Digital
  • Power Supply - 230 V AC, Single Phase, 50 Hz
  • Controller - Digital controller with 5-inch colour display
  • Interface - USB interface for data transfer
  • Warranty - 1-year



Software:

  • Communication with PC through USB interface.
  • Storage of test reports and graphical results.
  • Export of data in Excel, CSV, PDF formats.
  • Entry of specimen information, operator details, test date and remarks.
  • Automatic report generation and printing.
  • Selection of specimen size and loading rate.
  • Included Software licence



Safety Features:

  • Automatic overload protection.
  • Emergency stop.
  • Automatic stop after specimen failure or maximum load.
  • Pressure relief protection.
  • Over-travel protection.
  • Electrical short-circuit protection.



Functional Features:

  • Automatic peak load capture.
  • Automatic compressive strength calculation.
  • Load rate indication.
  • Test report generation.
  • Storage of test data.
  • USB communication.
  • Calibration facility.



Standard Accessories:

  • Emergency stop switch
  • Compression Testing Machine.
  • Hydraulic power pack.
  • Loading frame.
  • Necessary spacers/adaptors.
  • Communication cable.
  • Software with licence.
  • User manual.
  • Calibration certificate.
  • Standard tool kit.
