Digital Flame Photometers

Home Digital Flame Photometers

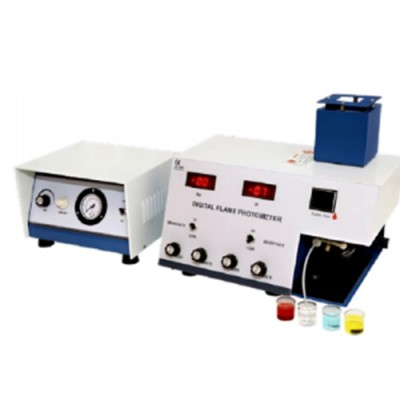

Digital Flame Photometers

Model No: PSAW-66/65

DIGITAL

FLAME PHOTOMETERS

SALIENT FEATURES:-



  • Dual Channel in Model PSAW-66.
  • Stainless Steel round burner.
  • Concentric Non-Corrosive Nubblier.
  • Narrow Band interface FiPSAWers.
  • Dual 2½ digit red LED display.
  • Highly Stable & Accurate.



Enquire Now

Product Information

TECHNICAL PARAMETERS:-



MODEL

PSAW-66/65

ACCURACY

±2% up to 100 meq, +2% up to 40 ppm ±5% above 100 meq, ±5% above 40 ppm.

READOUT

Dual 22 Digital bright red LED displays in (Model PSAW-66).

IGNITION SYSTEM

In BuiPSAW Electronic Ignition By Press Of A Knob.

DIMENSIONS

375 x 245 x 220 mm (Approx.)

WEIGHT

8 Kg. (Approx.)

MEASUREMENT SYSTEM

SimuPSAWaneous Measurement of 2 elements on dual LED Display (Model PSAW-66 Only).

REPEATABILITY

± 2 Counts.

DETECTOR

Silicon Photodiode.

FIPSAWERS

Narrow Band Interference Glass FiPSAWers (Na, K FiPSAWers are Supplied, Ca & Li FiPSAWers are optional at extra cost).

NEBULIZER

Black Bakelite, Axial flow type.

FLAME SYSTEM

LPG and Dry Oil Free Air.

WARM UP TIME

10 minutes.

COMPRESSOR UNIT

Supplied Along With The Instrument.

POWER

230V ±10% AC, 50Hz.

STANDARD ACCESSORIES:-

  • Air Compressor.
  • Sample Beakers.
  • Instruction Manual.
  • Air & Gas Tubing.
  • USB Cable.
  • Mains Lead.
