Product Information
TECHNICAL SPECIFICATIONS
- Model - Semi-Automated Distillation Unit
- Application - Determination of distillation characteristics of crude oil, petroleum products, & other organic liquids
- Standard Compliance - Conforms to ASTM D86, IP 123, and related international standards.
- System Configuration - Complete Semi-Automated Distillation Apparatus with all essential accessories for immediate Operation
- Lab. Operation - Suitable for continuous 24 x 7 lab operation.
- Construction - Compact, rugged, durable laboratory design suitable for routine use.
- Distillation Type - Semi-Automated Distillation Apparatus for ASTM D86 testing.
- Distillation Range - Ambient to 400°C
- Initial Boiling Point - Automatic indication of Initial Boiling Point (IBP).
- Heater - Low thermal inertia Electric Heater with precise electronic temperature control.
- Heating Power - High-efficiency electrical heater, 1000 W.
- Heat Control - Electronic power regulator with precise 10-turn low-voltage potentiometer for heat adjustment.
- Heater Cooling - Integrated cooling fan for heater section.
- Cooling System - Inbuilt closed-loop CFC-free refrigeration and heating system.
- Condenser - Stainless steel condenser with outer jacket for temperature-controlled coolant circulation.
- Condenser Temp. Range - 0 - 80°C with independent Digital LED Based PID Controller
- Receiver Chamber - Non-corrosive enclosed receiver section with air circulation for heating and cooling.
- Receiver Temp. Range - 10-40°C with independent PID controller & digital display.
- Temp. Sensor - Certified Class-A PT-100 Platinum Resistance Sensor with Automatic barometric correction.
- Temp. Accuracy - ±0.1°C.
- Temp. Display - Digital Display for vapor temp.
- Vapor Temp. Correction - Automatic Correction PT-100 with ASTM mercury thermometer & barometric correction as per ASTM D86 Standard.
- Thermometers - ASTM certified thermometers with Calibration Certificate: IP SC/ASTM 7C & IP 6C/ASTM 8C.
- Indicators - Main Power ON/OFF indicator & Heater Status indicator.
- Distillation Flask - 125 ml heat-resistant borosilicate glass flask with ceramic board and smooth lifting mechanism.
- Power Supply - 230 ±10 V AC, 50/60, ±1 Hz, Single Phase
- Operating Temp. - Ambient 0 - 50°C
- Relative Humidity - Up to 95% RH, non-condensing.
- Warranty - 1 Year (Against Manufacturing Defects)
- Accessories - Operation & Instructional Manual

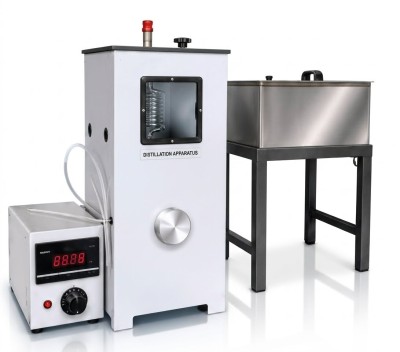

DISTILLATION APPARATUS (For Crude Oil)
SEMI AUTOMATED DISTILLATION UNIT
KEY FEATURES:
- ASTM D86, IP123 Compliant standards.
- Semi-Automated operation with Automatic IBP detection.
- Digital vapor temperature indication with automatic barometric correction.
- High-precision Class A (PT-100) temp. measurement (±0.1°C).
- Independent PID Control for Condenser & receiver temp.
- Eco-Friendly CFC-Free Closed-loop Refrigeration System.
- 1000W Precision-Controlled electrical heating System.
- Optical Drop Detection LED indication.
- Lab. Design Suitable for Continuous 24x7 operation.
- Complete System all glassware, thermometers, Calibration Certificates, & Accessories.
ACCESSORIES:
- Distillation 125 ml Borosilicate Flask with Teflon Cork - 05 Nos.
- ASTM Thermometer 7C Range (-2 to 300°C) with Calibration Certificate - 02 Nos.
- ASTM Thermometer BC Range (-2 to 400°C) with Calibration Certificate - 02 Nos.
- Receiving Cylinder 100 ml, 0.1 ml Graduation/Accuracy - 05 Nos.
- Heater Plate 38 mm & 50 mm - 02 Nos. Each
- Teflon Centering Snug-fitting Type - 02 Nos.
- Condenser Cleaning Swab - 05 Nos.
- Drop Plate - 02 Nos.
- All complete accessories and Fully functional operation - 01 Set
