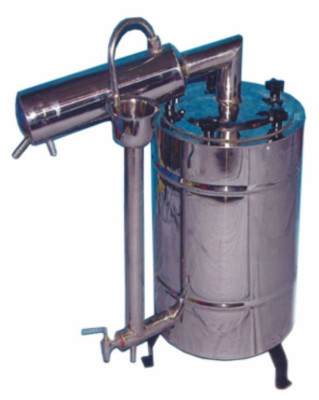

DOUBLE DISTILLATION UNIT
DOUBLE DISTILLATION UNIT
Model No: PSAW-DD-20
- Water Still Table Model is made of Stainless Steel Body.
- Water Still has double wall construction made of polished stainless sheet.
- The gap between the two sheets is filled with glass wool for heat insulation.
- It is easy to handle table model
- Water Still works on 220 V AC 50 Hz single phase.
Product Information
Technical Parameters
- Type : Skid-mounted
- Water Tank Capacity : 20 liters
- Number of Vapour Lines : 2 Nos.
- Material of Construction (MOC) : SS 304
- Condenser MOC : SS 304
- Fitting Type : Fixed
- Number of Condensers : 2 Nos.
- Condenser Type : Shell & Tube
- Cooling Water Outlet : ½” BSP
- Top Design : Conical Bottom
- Design : Flat
- Inlet water temp. : up to 20°C
- Pressure approx. : 2 bar
- Surface Finish (Side) : Matte polish
- Heating Capacity : 4 kW
- Drain : ½” ball valve
- Water Level Control : Automatic
- Flow Rate : 5 LPH
- TDC of Water : ≤ 10
- Number of Heaters : 1 No. in each vessel
- Heater Control : Switching through control panel
- Water Level Control : Automatic
- Power Consumption : 4 kW
- Certified : CE Certified
