Product Information
TECHNICAL SPECIFICATIONS:
- Function : Basic, Wavelength Scan, Multi Wavelength, Kinetics, Quantitative, DNA/Protein
- Wavelength Range : 190-1100 nm
- Spectral Bandwidth : ≤0.5 nm
- Optical System : Double Beam, Grating 1200 lines/mm
- Wavelength Accuracy : ±0.1 nm
- Wavelength Repeatability : ± 0.1 nm
- Scanning Speed : HI, MED & LOW, MAX. >5000 nm/min
- Photometric Accuracy : ±0.1% T or 0-100%T, ±0.002 A/h @1A
- Photometric Range : %T 0-200% Abs: -0.4 to 4A Conc.: 0-9999 C
- Photometric Repeatability : ±0.1% T or 0-100%T
- Stray Light : ≤0.02 %T @ 220 nm & 340 nm
- Stability : ± 0.0003 A/h @ 500 nm
- Display : 7 Inches 320 x 240 TFT colored graphical LCD
- Baseline Flatness : ±0.0005 nm/min 1A/h (200-1000 nm)
- Sample Compartment : 2 cell holder 10 mm path-length. (50 mm & 100 mm path-length optional at extra cost)
- Light Source : Flash Xenon
- Printer Interface : USB drive, USB host and RS 232
- Detector : Photo multiplier Tube
- Operating Mode : %T, Abs, and Conc.
- Accessories : Make Branded i5 Generation Desktop, 8 GB Ram, 1 TB SSD, 22" Display Monitor
- Compartment : 2 Positioned Cuvette Holders
- PC Connectivity : USB Port for PC connectivity and RS 232
- Power : 220±10% AC, 50 Hz
- Dimensions (L x B x H) : 580 x 500 x 210 mm (Approx.)
ACCESSORIES
- Quartz Cuvettes-A set of 6
- Glass Cuvettes-A set of 6
- Instruction Manual
- Software Manual
- Software
- USB Data Cable for PC Connectivity
- Mains Lead
- Dust Cover

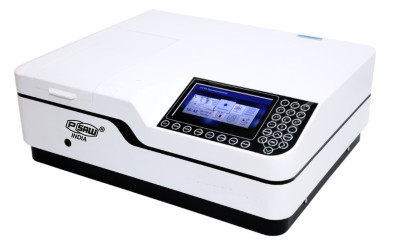

DOUBLE BEAM UV-VIS SPECTROPHOTOMETER (2 CELL HOLDER)
PRODUCT FEATURES:
- Double Beam Optics
- 320x240 TFT Colored Graphical LCD
- Auto Wavelength Setting
- On-screen Standard and Kinetic Curve Display
- Tungsten/Deuterium Lamp can be turned ON/OFF Individually to Extend Lifetime
- Application Software provides complete control of the instrument from a computer through the built-in USB Port.
- Basic, WL Scan, Multi-Wavelength, Kinetic, Quantitative, DNA/Protein modes
- Pre-aligned design makes it convenient to change Lamps
- Large Sample Compartment can accommodate 5-100 mm path-length cuvettes with optional holders.
