Product Information
TECHNICAL SPECIFICATIONS:
Function
Basic, Wavelength Scan, Multi Wavelength, Kinetics, Quantitative, DNA/Protein
Wavelength Range
190-1100 nm
Spectral Bandwidth
1.0 nm
Optical System
Double Beam, Grating 1200 lines/mm
Wavelength Accuracy
± 0.1 nm
Wavelength Repeatability
± 0.1 nm
Scanning Speed
HI, MED & LOW, MAX. 3600 nm/min
Photometric Accuracy
± 0.3%T or
± 0.002 A/h @1A
Photometric Range
%T 0-200%
Abs: -0.4 to 4A
Conc.: 0-9999 C
Stray Light
< 0.05 %T @ 220 nm & 360 nm
Stability
±0.001 A/h @ 500 nm
Display
10.1 Inches Colored Touch Screen
Baseline Flatness
±0.001A/h (200-1000 nm)
Sample Compartment
2 cell with automatic cell changer-10 mm path-length.
Light Source
Halogen & Deuterium Lamps (Pre-Aligned)
Printer Interface
USB drive, USB host and RS232
PC Connectivity
USB PORT FOR PC CONNECTIVITY
Detector
Silicon photodiode
Power
230 0 ± 10% AC, 50 Hz
Dimensions (L x B x H)
810 x660 x 390 mm (Approx.)
Weight
27.0 Kg. (Approx)
ACCESSORIES:
- Quartz Cuvettes - A set of 2
- Glass Cuvettes - A set of 4
- Instruction Manual
- Software Manual
- Software
- USB Data Cable for PC Connectivity
- Mains Lead
- Dust Cover

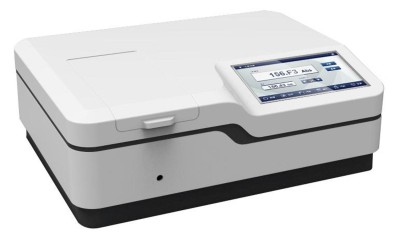

DOUBLE BEAM UV-VIS SPECTROPHOTOMETER (TOUCH SCREEN-2205)
PRODUCT FEATURES:
- Automatic Dark Correction System.
- Double Beam Optics
- 10.1 Inches Touch Screen 1200 x 800 Resolution
- Auto Wavelength Setting
- On-screen Standard and Kinetic Curve Display
- Tungsten/Deuterium Lamp can be turned ON/OFF Individually to Extend Lifetime
- Application Software provides complete control of the instrument from a computer through the built-in USB Port.
- Basic, WL Scan, Multi-Wavelength, Kinetic, Quantitative, DNA/Protein modes
- Pre-aligned design makes it convenient to change Lamps
- Large Sample Compartment can accommodate 5-100 mm path-length cuvettes with optional holders.
- Inbuilt smart station with Supporting windows 10 operating system (Higher Versions).
- Automatic Wave-length & Cut-off Filter with lamp Selection, Baseline Correction, & Sample Positioning and Audit trail function.
- Separate Admin & User login
- Up to 5 user logins
- 128 GB inbuilt & expandable memory
- Nitrate & Fluoride analysis provision
- 5 auto sample holders (10 mm cuvette)
- Modes: %T, Abs, Concentration, DNA/Protein, Multi-component, Fluoride, Nitrate & Time Scan
