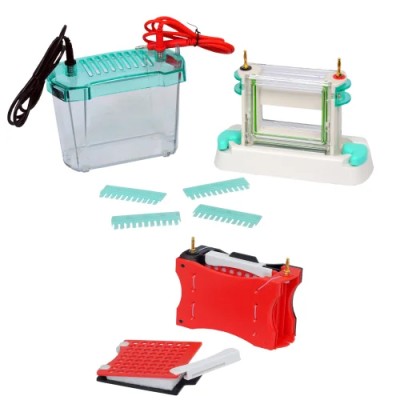

FAST BLOTTING SYSTEM

Home FAST BLOTTING SYSTEM
FAST BLOTTING SYSTEM|PSAW

FAST BLOTTING SYSTEM

Model No: Model : PSAW-R0001

SALIENT FEATURES:

  • Fast Blotting System Capable of four gels simultaneously
  • Button keypad with Digital display
  • Power Failure during run, No-load detection, No Cassette detection, End-of-run Indication.
  • Rapid Electro-Transfer of proteins from polyacrylamide gels to Western blotting Applications.
  • Automatic monitoring Visual & Audible Alerts operational Status.
  • Compatible with Standard Consumables.
  • Standard SD, 1.5 mm Gels, High, Low Molecular Weight (MW), and Mixed MW

Enquire Now

Product Information

TECHNICAL SPECIFICATIONS:

  • Make : PSAW
  • Model  : Fast Blot System
  • Dimension : 18cm (L) x 7cm (B) x 22cm (H)
  • Gel Holder Cassette  : 1 No.
  • Buffer Volume  : 800ml
  • User-Defined Programs : 24 programmable
  • Gel Size  : 16 x14 CM (1 Gel)
  • Connecting Cord  : Red and Black (Each One)
  • No. of Electrodes  : Anode and Cathode (Each One)
  • Cooling fan : Integrated
  • Fiber Pad  : 6 Nos.
  • Foam Pad : 6 Nos.
  • Connectivity  : USB input port
  • Buffer Chamber with Safety Lid  : 1 No.
  • Instruction Manual : 1 No.
  • Power Consumption : 276 VA, 175 W
  • Power Supply  : 100–240 VAC, 50–60 Hz
  • Warranty  : 3 Year’s
