Product Information

Technical Parameters:

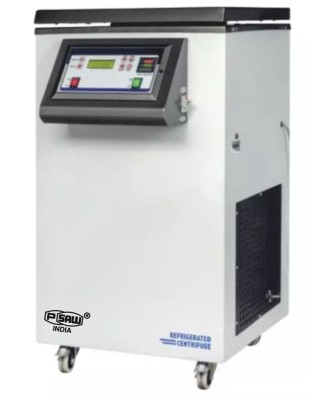

• Model : Floor-standing, High Speed Contrifuge with Compact Footprint.
• Temp. Control Range: - 10°C to 40°C (Adjustable 1°C increments).
• System Range : 15 - 35°C Ambient <= 70 % RH, (Non-condensing)
• Temp. Stability : ± 1°C
• Temp. Accuracy : ± 3°C (Operating speeds)
• Run Modes : Timed, Continuous, & @ Speed Timing
• Chamber Capacity : ≥ 4 L. Capacity (Multiple rotors) Higher sample throughput.
• Speed Accuracy Set : ± 50 RPM, +100 RPM, & + 0.1%
• Overall Dimensions : 40" x 29" X 23" (LxWxH) .
• Display : LCD Digital Display with intuitive Soft-knob key Controls.
• Steps Profile : 3 Nos. Selectable Acceleration & Deceleration profiles.
• Energy Saving : Automatic standby and Eco shut-off Function.
• Input Protection : Compatible with External Voltage Stabiliser.
• Power Supply : 220-240 VAC +10%, 50 Hz, Single-Phase.
• Program Memory : 30 user-Definable programs with Step-run Capability.
• User Management : Access Controlled via password key-lock Function.
• Data Logging : Data Record & Retrieve run logs with Export in GLP Compatible (CSV, PDF) Format.
• Drive System : Brushless with Induction drive Motor (SR, Frequency-Conversion).
• Biosafety : Aerosol-Tight rotor lide Containment Accessories for rotors.
• Rotor Parameter : Display of installed rotor information & Allowable Set Points.
• Certifications : EN 61010-1-2-020 Standard and CE, ISO 9001 with UL Certified
• Connectivity : USB port for Export program & operating log management System.
• Accessories : User and Service Manual, quick Start guide, Power Cable, rotor date sheets & RCF charts
• Lid Safety : Electronic lid lock (Emergency Release) Mechanism During power fuilure.
• Warranty : 3 Year's

FIXED-ANGLE ROTOR 4 X 250 ML
Technical Specifications

• Configuration : Fixed-Angle Rotor 4 x 250 mL pockets rotor configuration with adapters Acceptable, rotor compatibility matrix with pocket count, volume/pocket, adapters, and batch capacity.
• Speed & RCF : Max speed RCF ≥ 20.000 kg (250 mL pockets) with RCF table and validation certificate.
• Bottle Capacity : 4 x 250 mL compatible bottles temp, range -10 °C to +40 °C. Bottle material,
• Rotor Material : Made of high-strength aluminium altoy with corrosion-resistant surface finish with Material & Finish Certified.
• Durability & Life : Life validation data, inspection interval, NDT criteria and allowable Service.
• Biocontainment Aerosol-light lid or certified bio containment accessories
• Cleanability : Rotor & accessories auto clavable (chemically resistant). Sterilization limits and compatibility
• Compatibility Rotor : Fully compatible with contrifuge model adapters.
• Safety Compliance : Rotor and accessories comply with EN 61010-2-420 centrifuge safety standards.
• Traceability : Rotor Serial number with manufacturing traceability, Service Life Details, inspection records, & Rotor FAT Certificate

FIXED-ANGLE ROTOR 50ML
Technical Specifications

• Configuration : Fixed-angle rotor with ≥6 x 50 mL and 28 x 50 mL pockets with adapters.
• Performance : RCF: ≥50,000k g for 50 mL pockets at max. radius with adapters.
• Material : High-strength aluminium alloy composite with Hard-anodised. Chemical-
• Resistant Durability : High-g cycles rotor life inspection intervals, & maintenance schedule.
• Biocontainment : Aerosol-light certified rotor fid containment Accessories Certified
• Cleanability : Rotor pockets, Seals & lids Autoclavable (Chemically resistant).
• Compatibility : Fully Compatible Centrifuge model adapters and provide rotor-Centrifuge Compatibility matris with max, speed limits for each tube combination.
• Safety : Rotor design & manufacturing IEC 60601 Safety standards.
• Traceability : Rotor Serial ID documentation of manufacture date, Service life, inspection Schedule, & End-of-Life Cliteria.

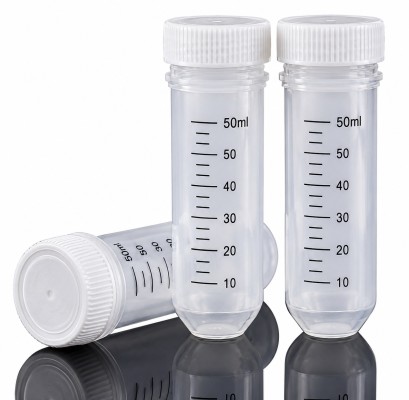

HIGH SPEED 50 ML BOTTLE
Technical Specifications

• Material : High-Clarity Polypropylene (PP) with Caps.
• Capacity : 50 mL nominal capacity with clear graduation marks and fill lines.
• RCF Raning : Rated for RCF ≥ permitted RCF rotor.
• Temp. Range : Suitable for Refrigerated Contriffigation -10°C to +40°C;
• Closure : Leak-proof screw cup with Chemically Resistant Sealing.
• Sterility : Autoclavable.
• Safety : Resistant Resistance with Common lab. buffers & Mild solvents.
• Compatibility : Compatible 50 mL rotor adapters.
• Traceability : Performance Certification with bach traceability.

VACUUM-BASED LIQUID REMOVAL SYSTEM
Technical Specifications

• Filter : Hydrophobic 0.2 µm sterilizable filter.
• Collection Bottle : Autoclavable Polypropylene bottles: 4 L & 2 L capacity.
• Suction Control : Adjustable Suction Controller Mechanical Vacuum Regulator & Integrated Check valve.
• Adapter : 8-Channel Adapter for Multiple Aspiration connections.
• Suction Tubing : Flow Through Suction Tube Compatible Hose Connection.
• Handset & Stand : Aspiration Hand Set Tabletop stand.
• Hose Nozzle Size : 6-10 mm; Outlet Connection 28mm.
• Vacuum Performance : Outlet pressure ≥1.1 bar Suction capacity.
• Motor Power : Motor power ≥40W.
• Construction : Lab liquid Aspiration Autoclavable (Chemically resistant) components.

SUITABLE POWER STABILISER
Technical Specifications

• Capacity : ≥5 kVA Rated input kVA, Suitable for compressor-start-up surge.
• Input Voltage Range : 160-270 VAC
• Output Regulation : 230 V ±1-2% @ Full Load.
• Response Time : Fast Voltage Correction Suitable Compressor & Motor-driven loads.
• Protection : Surge protection, over-voltage, under-voltage, Short-circuit, & overload protection.
• Display : LED Display For input Voltage, output voltage, and load status.
• Duty & Operation : Continuous Duty operation low noise performance.
