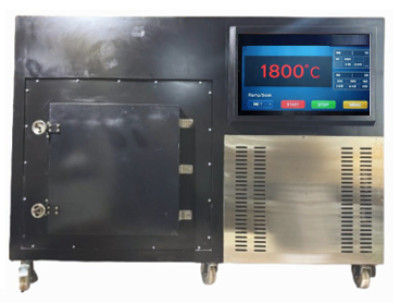

HIGH TEMP. FURNACE
Model No: PSAW-126
Salient features:
- Compact table-top configuration.
- High temp. stability & uniform heat distribution.
- Rapid heating with optimized thermal efficiency.
- Heavy-duty box type chamber design.
- Advanced programmable temp. control system.
- Energy efficient low thermal mass insulation.
- User-friendly digital interface.
- Safe & Reliable long-term Operation.
- Gas Purging System with inlet & outlet for protective gases.
- Manual /Automatic gas supply with solenoid valve, flow meter & pressure gauge
Product Information
Technical Parameters:
- Max. Temp. : 1800°C
- Working Temp. : 1750°C
- Display Controller : Touchscreen HMI graphical temp. Display, Real-time Data logging, Calibration Support & multilingual interface.
- Inner Chamber Material : SS Dual-Shell Housing.
- Heating Elements : High-Grade MoSi? Heating Elements
- Max. Timing Setting : <60min.
- Inner Chamber Volume : 8 Ltr.
- Thermocouple Type : B
- Programmable Control : 40 Segments (50 Programs.)
- PC Connectivity : USB Interface through via PC Connectivity Data Storage
- Safety Features : Over Temp. Limiter (Manual Reset Protection.)
- Power Rating : 9000W
- Power Supply : 415V (±10%), 50Hz.3 Phase
- Warranty : 3 Years
- Certification : CE & ISO Certified
Accessories:
- VCD software for process control & documentation
- Over-temp. limiter compliant with Thermal Protection Class 2
- Square ceramic Saggar for Multi-layer Sample Loading.
- Preparatory room table with granite top & powder-coated steel frame.
