Product Information
Technical Parameters:
- Model : PSAW-906
- Capacity : 78L
- Chamber Type : SS 304
- Dimensions : 16" X 24"
- Tray : SS 316 Grade Stainless Steel
- Top Lid : SS 316 Grade Stainless Steel
- External Wall : SS 316 Grade Stainless Steel
- Pressure Vessel : SS 316 Grade Stainless Steel
- Gasket : Made of joint less silicon rubber.
- Exhaust pressure : Manual through the exhaust valve
- Sterilizing pressure : 1.2 to 2.5 kgf/cm2 (15 to 35 psi)
- Pressure gauge : 0 .2.1 kgf/cm2 (60 psi)
- Temp. Range : 121°C to 134°C
- Pressure Range : 15 – 35 PSI
- Tubular stand & supporting ring : SS 316 Grade Stainless Steel
- Operation in temp. : 100°C to 250°C
- Power Rating : 6 KW
- RH Range : 100%
- Power Supply : 220/440V AC, 50/60 Hz.

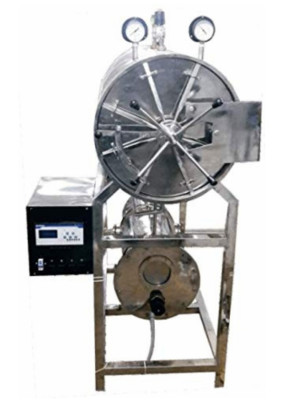

HORIZONTAL CYLINDRICAL AUTOCLAVE
- All controls (switches, knobs, indicators) clearly visible and easily accessible.
- Free from sharp edges, ensuring operator safety.
- Designed for easy operation, maintenance, and servicing.
- Fitted with an ELCB (Earth Leakage Circuit Breaker) for electrical safety.
- Heavy-duty power cord and industrial-grade plugs of adequate length and suitable current-carrying capacity.
- Power plugs rated for maximum operating voltage and current.
- Designed to withstand voltage fluctuations, eliminating the need for an external stabilizer.
- System protected against electromagnetic interference (EMI), whether radiated or conducted through power lines.
- Centralized operating valve system with an integrated drying system.
- Two pressure gauges provided and clearly visible from both sides of the sterilizer.
- Equipped with a self-locking door made of 10 mm thick SS 316, ensuring high mechanical strength.
- Door interlocked and cannot be opened while the chamber is under pressure.
- Disengage only after complete pressure exhaust.
- Designed to protect operating personnel against explosive or accidental door opening.
- Self-expandable silicone gasket for reliable and long-life sealing.
- Horizontal cylindrical, high-pressure, single-door steam sterilizer of robust construction.
- Inner chamber, outer jacket, back plate, end rings, & steam generator stainless steel conforming to BIS 3829.
- All joints argon arc welded to ensure leak-proof & durable construction.
- All bolts, nuts, & pipe connections made of SS 316.
- Steam chamber & outer jacket fully insulated to minimize heat loss & ensure operator safety.
- Sterilizer hydraulically tested at twice the working pressure to ensure safety & reliability.
- Mounted on a tubular steel frame with ground-leveling flanges for stable.
