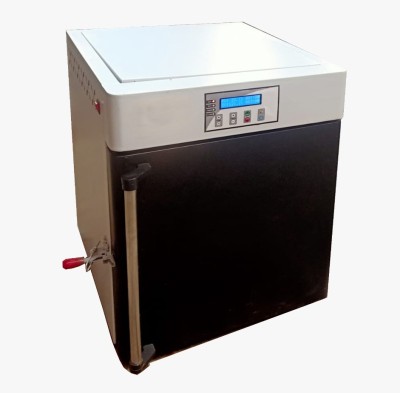

HOT AIR OVEN
Model No: PSAW-101/E
- A Hot Air Oven suitable for drying, heating & conditioning of biomass and samples. The unit robust & durable construction, designed for continuous laboratory operation with precise temperature control and enhanced safety.
KEY FEATURES:
- PRECISE TEMPERATURE CONTROL : Accurate control & unifformity
- ENHANCED SAFETY FEATURES : Multiple safety with alarm & protection
- DURABLE CONSTRUCTION : SS 304 chamber with double wall build
- DATA LOGGER (8 YEARS) : Internal storage with USB & RS232 port
- NATURAL AIR CONVECTION : Gentle, uniform temperature distribution
Product Information
SALIENT FEATURES:
- Inner door fully insulated Stainless Steel door with 2-point compression locking for tight sealing, uniform temp. retention & safety.
- Doors open over 180° for easy loading, unloading, cleaning & maintenance.
- Electronically controlled air flap for fresh air intake with preheating.
- Microprocessor based controller with LED display.
- Internal data logger for approx. 8 years with USB/RS232 connectivity.
- Facility for re-calibration without external PC connectivity.
- Digital LED display for temperature (°C) for easy monitoring.
- Set point wait function process timing starts after set temperature is reached.
- Natural air convection ensures uniform temperature distribution without disturbing samples.
- Temperature safety device as per DIN 12880 with integrated alarm.
- Mechanical temperature limiter for independent safety.
- Adjustable electronic over-temp. protection controller for overheating safety.
- PT100 sensor (DIN Class A, 4 Wire) for accurate measurement.
- Adjustable shelves in SS 304.
Technical Parameters:
- Model : PSAW-101/E ( Table Top Model)
- Temp. Range : Ambient +20°C up to 250°C
- Temp. Variation : 100°C ( ±0.5°C )
- Temp. Accuracy : 100°C ( ±1°C )
- Display : Microprocessor Based Controller with LED Display
- Construction : Double Walled Constructed
- Outer Body Material : Textured Mild Steel with Epoxy Powder Coated
- Inner Chamber Material : SS 304 (Stainless Steel)
- Inner Chamber Size : 24” x 18” x 18” ( Inches)
- Shelves : 2 Nos. SS Adjustable & Removable Shelves.
- Door Type : Single
- Temp. Uniformity : ±1°C
- Chamber Capacity : 125 LT
- Communication Port : RS 232 Interface & USB port for downloading internal data storage memory to a PC
- Heating Elements : 4 Sides to temp. homogeneity inside incubator
- Temp. Sensor : PT100 Sensor ( DIN Class A, 4 Wire Circuit)
- Safety Features : Audible & Visual Alarm with Over-temp. protection & Over Heating Protection
- Power Supply : 230V ±10 %, 50 Hz, Single Phase
- Warranty : 2 Year’s
- Documentation : IQ/OQ/PQ
- Certifcation : CE & ISO 9001 & UL Certified.
- Certified : NABL Accredited Lab Approved Test Certified.
