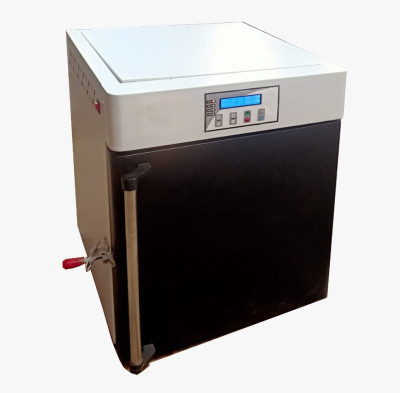

HOT AIR OVEN (101/E)

Home HOT AIR OVEN (101/E)
PSAW HOT AIR OVEN (101/E)

HOT AIR OVEN (101/E)

Model No: PSAW-101/E

Features:

  • Electromechanical controlled exhaust air lap .
  • Highly accurate controller that allows gentle drying of heat sensitive materials.
  • Avoiding damage due to rapid temp. over shooting.
  • Set user level password and password protection to control all other controller.
  • Temp.  Adjustable either in (°C or °F) .
  • USB port for recording data & Ethernet interface.
  • As per Standard Safety IP 20 protection .
  • Class 2 integrated independent adjustable temp. safety device (DIN 12880) with visual alarm.
  • Built-in thermal protection device to shut off the pump automatically overheated and then restart.
Enquire Now

Product Information

Technical Parameters:

  • Model : PSAW -101/E
  • Exterior body : Mild Steel with Epoxy Powder Coated finish.
  • Inner chamber : Stainless Steel 304 and AISI 430 grade
  • Temp. Accuracy : Temp. Variation @150°C <±1.5°C,   Temp. Fluctuation @150°C  <±0.3°C
  • Heating Up Time : <20min. (150°C )
  • Capacity : 125 Liter
  • Racks : 2 Nos. Racks Made of Chrome Plated SS ( Loading Per Rack 30 Kg. Min.)
  • Dimensions Size : 18" x 18" x 24" ( W x D x H)
  • Insulation : High Grade  (4") Glass wool Insulated.
  • Temp. Range : Ambient 0°C to 300°C
  • Construction : Double walled construction.
  • Temp. Controller : Microprocessor with PID Based Digital LCD Screen  with Timer
  • Door : Front Open Door with Detection with Heat Resistant Gasket  & Handle.
  • Air Circulation : Forced Air Convection (with Fan Controller) Advance Pre Heating line 10 % Up to 100%
  • Works on : 230V (±10%) , AC 50 Hz, (with fuse protection)
  • Standard Warranty : 1 Year
  • Certification  : CE and ISO Certified



ACCESSORIES:

  • Power cable and Plug
  • Instruction Manual
  • Warranty Certificate
