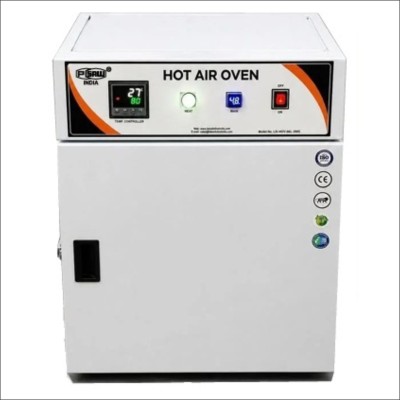

HOT AIR OVEN (PSAW-101)

Technical Parameters:

• Model : Hot Air Oven (Stackable)
• Exterior Material : Mild Steel with Powder Coated (RAL 7035)
• Inner Chamber : SS V2A inner chamber & door interior
• Dimensions : 710 x 735 x 605mm (WxHxD)
• Inner Chamber Size : 600 x 450 x 450mm (WxHxD)
• Chamber Capacity : ≥115Ltr
• Temp. Uniformity : ±1.7 @150°C
• Temp. Stability : ±0.3 @ 50°C
• Heating Time : ≤20 min to 150°C
• Temp. Range : Ambient +10°C to 300°C
• Air Circulation : Forced Convection with homogeneous temp. distribution
• Controller : Door-mounted LCD with password protection, ramp & clock Recording functions
• Exhaust Control : Electromechanical Exhaust Flap Control through controller
• Shelves : 2 Chrome-plated racks+ 1 perforated tray; load ≥30 kg/rack
• Recovery Time : <5 min After 30-Sec Door opening @ 150°C
• Safety Class : 2 independent Adjustable Safety Device, DIN 12880, with Visual Alarm
• Data Port : Built-in USB
• Access Port : 30 mm, left side
• Interior : Inner Chamber light Visible Clear Viewing Window
• Class Protection : IP20 (As per EN 60529)
• Electrical : 230 V AC, 50/60 Hz; Fuse 6.3 A
• Weight : ≤60 kg
• Power : <1.5 kW
• Noise : ≤45 dB(A)
• Certification : CE Certificate
