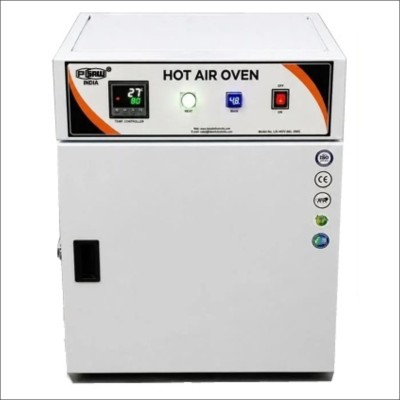

HOT AIR OVEN (PSAW-101/A)

Model No: PSAW-101/A

Technical Parameters:

Model : Hot Air Oven (Stackable)
Exterior Material : Mild Steel with Powder Coated (RAL 7035)
Inner Chamber : SS V2A inner chamber & door interior
Dimensions : 560 x 625 x 656mm (WxHxD)
Inner Chamber Size : 400 x 400 x 400mm (WxHxD)
Chamber Capacity : 56Ltr
Temp. Uniformity : ±1.7 @150°C
Temp. Stability : ±0.3 @ 50°C
Heating Time : ≤18 min to 150°C
Temp. Range : Ambient +10°C to 300°C
Air Circulation : Forced Convection with homogeneous temp. distribution
Controller : Door-mounted LCD with password protection, ramp & clock Recording functions
Exhaust Control : Electromechanical Exhaust Flap Control through controller
Shelves : 2 Chrome-plated racks+ 1 perforated tray; load ≥30 kg/rack
Recovery Time : <5 min After 30-Sec Door opening @ 150°C
Safety Class : 2 independent Adjustable Safety Device, DIN 12880, with Visual Alarm
Data Port : Built-in USB
Access Port : 30 mm, left side
Interior : Inner Chamber light Visible Clear Viewing Window
Class Protection : IP20 (As per EN 60529)
Electrical : 230 V AC, 50/60 Hz; Fuse 6.3 A
Weight : 45 kg
Power : <1.5 kW
Noise : ≤45 dB(A)
