Product Information
Technical Specifications:
- Model : PSAW -101/F
- Construction : Triple Walled
- Temp. Range : Ambient to 250°C
- Temp. Accuracy : ±1°C
- Temp. Deviation : ±2°C
- Temp. Stability : ±1°C
- Timer Setting Range : >11520min (Digital Display)
- Rise and Fall Rating : Temp. 1°C/min. & Setting high rate rise and Fall
- Temp. Sensor : Pt100
- Noise Level : <70dBA
- Inner Chamber Capacity : 224 LTR
- Inner Chamber Size : 24" x 24" x 24" (W x D x H)
- Exterior Body Material : Made of Galvanised Steel Plate (Epoxy Coated Finished)
- Inner Chamber Material : Made of Stainless Steel ( SS 304 ) Grade
- Display : Microprocessor with PID based Digital LED Display with Program Profile Temp. Controller
- Air Circulation : Forced Air Circulation
- Mobility : Heavy-duty Rust-free castor wheels with locking arrangement for easy movement and secure positioning.
- Entry Port : One Side Entry port, Ø125 mm, Made of low-thermal conductivity material, with non-conducting plugs For secure closure when not in use.
- Mobility : Heavy-duty rust-free castor wheels with locking arrangement For Easy movement & Secure positioning.
- Observation Window : Large Multiple-Glazed Glass Window ( 300x300mm)
- Insulation : High Grade Mineral Wool Insulation.
- illumination : Inner Chamber luminous Lighting Illumination.
- Safety Features : Audible Alarm For Over Heat Protection & Over Current protection against Short circuit, phase failure, overvoltage and overcurrent.
- Shelves : 3 Nos. SS Adjustable & Removable shelves.
- Power Supply : 220-240V, AC 50/60 Hz., Single Phase
- Certified : ISO Certified.
- Accessories : 6 Pairs Gloves Suitable bearing 350°C, and Suitable Air Circulation Compressor
- Included : Instructional Manuals, 100mtr Power Cable with plug, Warranty Card
- Warranty : 2 Year’s.

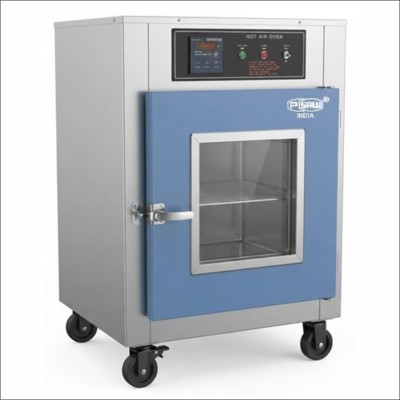

HOT AIR OVEN (PSAW-101/F)
Salient Features:
- Microprocessor-based temp. control.
- Maintaining the Set temp. 11520min.
- High-temp. Silicone Rubber gasket for airtight sealing.
- Data acquisition provision provide external devices.
- Natural Air Circulation provide by holes in the wall of cabinet.
- Front-opening, Single hinged Door with Handle, proper Cladding, Thermal insulation, optimum sealing, & Self-locking arrangement.
- Automatic restart at set temp. timer resumes from interruption point and completes the preset total test time, with automatic shutdown.
