Product Information
Technical Specifications:
- Equipment Type : Programmable Temperature & Humidity Test Chamber
- Temperature Range : -40°C to +150°C
- Temperature Stability : ±0.3°C to ±0.5°C
- Heating Rate : ?3.0°C/min
- Cooling Rate : ?2.0°C/min
- Heating Performance : -40°C to +150°C (in 60 min.)
- Cooling Performance : +20°C to -40°C ( in 50 min.)
- Lowest Temperature : -40°C
- Humidity Range : 30% to 95% RH
- Humidity Fluctuation : ±3.0% RH
- Internal Dimensions (W × H × D) : 300 × 300 × 250 mm
- External Dimensions (W × H × D) : Approximately 450 × 700 × 750 mm
- Chamber Capacity : 22 Litres.
- Water Tank Type : Built-in removable water tank
- Water Tank Capacity : 5L
- Refrigeration System : Air-cooled condenser
- Load Capacity : 20 kg Approx.
- Chamber Door : Viewing window with anti-fog heated glass
- Chamber Lighting : LED illumination with ON/OFF switch
- Controller : 4-inch LED colour touch screen programmable controller
- Power Supply : 230 V AC ±10%, 50 Hz, Single Phase
- Power Supply Terminal : 250 VAC, 1 A terminal for powering test specimens
- Cable Port Dia : 50 mm (with rubber plug)
- Weight : Approx. 100 kg
- Accessories : Software, Specimen Basket, Water Tank Dry Protection Switch, Door Safety Switch, Air Circulator Temperature Switch, Thermal Fuse, Water Tank Low-Level Switch, Warranty Certificate, Operational Manual
- Safety Feature : Overheat Protection, Overcool Protection, Humidifier Water Level Detector, Humidifier Dry Heat Protector, Temperature & Humidity High/Low Limit Alarm, Dry Bulb Temperature Burnout Detection circuit

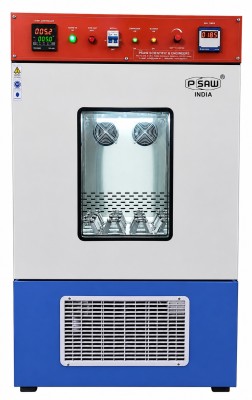

HUMIDITY CHAMBER (TEMPERATURE CHAMBER)
Salient Features:
- Automatic water pump system.
- Controller with programmable operation, data storage, external memory and parameter setting.
- User-programmable shortcut key for one-touch access to frequently used functions.
- Remote start, stop, monitoring and control function through PC, laptop, tablet etc.
- Automatic e-mail noti ication for alarms and test completion.
- USB port for loading, copying and backup of test programs.
- External Alarm Terminal & Temperature & Humidity Output Recorder.
