Features:

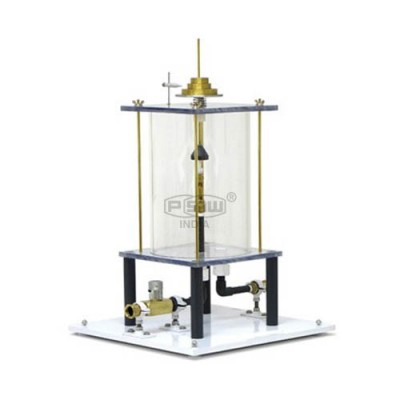

• Consists of a cylindrical tank with lateral transparent surfaces where a nozzle, connected to the Hydraulics Bench is aligned with a device in which the problem surface is fitted.
• The vertical force made by the water against the surface is measured using calibrated weights that balance this force.
• The dead weight of the moving parts is counterbalanced by a compression spring.
• Holes made on the tank base in order to drain the water.
• Discharge nozzle inside clear acrylic cylinder.
• Impact against a flat surface.
• Impact against a curve surface of 120o.
• Measurement of the jet forces via the weight-loaded scale

Specification:

• Jet diameter: 8 mm.
• Impact surfaces diameter: 40 mm.
• Dimension: 800-x800 x 800 mm
• Weight: 90kg

Impact surfaces:

• 180 hemispherical surface.
• 120 curve surface.
• 90 flat surface.
• A set of masses of 5, 10, 50 and 100 g. is supplied.
