INCUBATOR SHAKER (CO2 CONTROL)

Home INCUBATOR SHAKER (CO2 CONTROL)
PSAW INCUBATOR SHAKER (CO2 CONTROL)

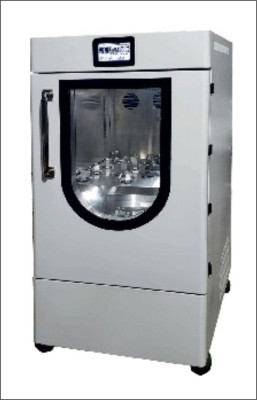

INCUBATOR SHAKER (CO2 CONTROL)

Model No: PSAW-400

SALIENT FEATURES

  • Digital Temp. controller
  • Programmable timer with selectable display in sec., min., or hours.
  • Adjustable and controlled acceleration and deceleration.
  • Active run status with Start/Stop (On/Off) function
  • Humidification and de-humidification system non-condensing type.
  • Humidity System Integrated water reservoir.
  • Magnetic drive or direct drive (equivalent technologies )
  • Stackable for another without adapter with not effected shaking run speed.
  • Suitable system for precise and stable humidity maintenance.
  • Heated Clear viewing glass Window on door.
  • GMP Standard
Enquire Now

Product Information

TECHNICAL PARAMETER

  • Model   :   PSAW-400
  • Chamber Volume  :   ≥ 200 L
  • Resolution / Precision :  0.1 °C
  • Accuracy  :  ±0.30 °C (absolute) at 37 °C
  • Inner Chamber Material :  SS 304 Grade ( Stainless Steel)
  • Display   :  Touch Screen LCD Screen display with Controller
  • Temp. Range  :  <50°C with integrated CO? control.
  • Tray Compatibility :  Suitable for flasks up to 5 L capacity
  • Compatibility  :  T-25 and T-75 culture flasks.
  • Orbital shaking dia :  Variable or fixed options of 12.5mm, 25mm, & 50 mm
  • Co? Control IR Sensor :  Measuring range 0–20%
  • Temp. Sensor  :  PT-100
  • Shaking Controller :  Digital Type with Accuracy ±1.0 RPM
  • Co? Resolution   :  0.1%, with accuracy of ±0.40% (absolute) at 5% CO? concentration.
  • Speed range  :  25 mm ±1 mm ( 25–350 RPM) (±50 RPM )

                                    12.5 mm ±1 mm ( 20–500 RPM )

  • Universal Platform :  475 x 420 mm ( L X W ), Usable area of ≥ 210,000 sq. mm  (≥ 2.26 SFT ).
  • Relative Humidity range :  Ambient +10% RH to 85% RH ( Min. 20–85% RH ).
  • Humidity resolution :  1% RH.
  • Humidity accuracy :  ±3% RH.
  • PC Connectivity  :  USB, Rs485 , Ethernet & WI-FI and Bluetooth options.
  • UV Sterilization  :  180°C ( Dry)
  • Power Supply  :  230/240V, AC 50/60 Hz.
  • Accessories  :  (i.)  Sticky strips suitable for securing flasks ranging from 25 mL to 5L

                                    (ii.) Clamps for Erlenmeyer flasks, 1 x 5000 mL, 2 x 1000 mL, 4 x 500 mL, 4 x 250 mL, 4 x 100 mL etc.
                                    (iii.) Conical tube rack for 15 mL tubes (capacity: 1 set).

  • Certification  :  CE and ISO Certified.
