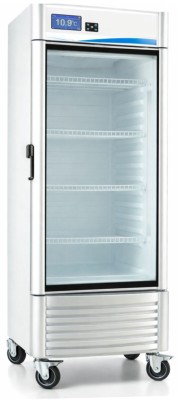

LAB REFRIGERATOR
Model No: PSAW-18 Plus
Salient Features:
- Microprocessor based temp. Control.
- 4" LED Display & Alarm System.
- Inner surface of medical grade compression molded plastic.
- Outer body of High grade Polished galvanized Steel.
- Automatic Defrost mechanism.
- Energy efficient due to insulation of High core density.
- Uniform Cooling by Forced Air Circulation.
- Adjustable Coated Wire Mesh Shelves.
- Clear product visibility with Dual Glass Door.
- Upright Model
- Mercury Free Interior LED lighting Illumination.
- Externally Mounted internal light Switch.
- Soft touch Grip door Handle.
- Pressure equalization Port.
- Automatic Controlled Servo voltage Stabilizer.
- Digital Temp. Probes - 2 Nos.,
- NABL Accredited lab approved Tested Calibration Certified.
Product Information
Technical Parameters:
- Model : PSAW-400
- Chamber Capacity : 400 ( liters)
- Cabinet Type : Vertical Cabinet
- Temp. Range Setting : 1 ~ 8°C
- Temp. Uniformity : 1.6°C
- Outer Cabinet : Made of Pre-coated Steel Material
- Inner Chamber : Made of White Painted Interior Material
- Movable Positioned : 4 Nos. Casters and Wheels
- Cooling type : Frost Free
- Noise Level : <55dba
- Each Shelve Loading : 40 Kg. Capacity Each Shelves
- Access Port Size : 1"
- Temp. Accuracy : 1.6°C
- Temp. Recovery : 5mins. ( Min opening of door 1min.)
- Cooling Method : Force Air Cooling System
- Refrigerant : HC ( F-GAS )
- Controller : Microprocessor Based with 7 Segment LED Display Temp. Controller
- No. of Door : 1 ( Hinged Toughened Glass)
- Safety Features : Audible and Visual Alarm, High an Low temp., Door Ajar Icon and low battery
- Adjustable Shelves : 5 Nos.
- Outer Dimensions : 573 x 655 x 1900mm (±10%) (W x D x H )
- Power Supply : 230V (±10%), 50 Hz, Single Phase
- Documents : IQ/PQ/OQ Documents
- Warranty : 2 Year’s
- Included Accessories : Instructional Manual, Rodent Proof Power Cord and Plug, Warranty Card.
KEY HIGHLIGHTS:
- PRECISE COOLING : 1°C to 8°C with uniform temperature control
- CLEAR VISIBILITY : Dual Glass Door with Interior LED lighting
- RELIABLE & SAFE : Alarms for high/low temperature, door ajar & low battery
- ENERGY EFFICIENT : High density insulation & Forced Air circulation
