Product Information
TECHNICAL SPECIFICATIONS:
- Model : PSAW-58-17
- Cabinet Type : Floor Standing Horizontal Type Laminar Air Flow
- Construction : MS Powder Coated Body (Frame and Body)
- Work Table Material : Stainless Steel 304
- Working Area Dimension : 4 × 2 × 2 ft (WxHxD)
- Cleanliness : Class 100 (ISO Class 5)
- Front Door : Acrylic Sliding Door Clear (5 mm)
- Control Unit : Microprocessor-based Touch Screen LCD Controller
- Air Flow Direction : Vertical
- Air Velocity : 90 FPM ±20 (?0.45 m/s)
- Illuminations : LED illumination (>800 Lux) with ON/OFF switch, 15W
- UV Lamp : Germicidal UV Lamp (30 W) with independent switch and UV hour meter.
- Pre Filter Type : Washable Synthetic non-woven polyester media housed in epoxy-coated GI frame
- Prefilter size : 600 × 300 × 65 mm Approx.
- Prefilter efficiency : 90%, F7 Grade with 6mm WG pressure, suitable for particles ?10 micron
- HEPA Filter : Mini-Pleat, Separatorless HEPA Filter with Ultra-fine Glass Fibre Media
- HEPA Size : 30 x 18 x 3 Inches Approx.
- HEPA Efficiency : ?99.997% @ 0.3 micron, H13 Grade, initial pressure-16 mm WG.
- Blower Assembly : Dynamically and statically balanced aluminium centrifugal blower driven
- Motor Type : 1/4 HP single-phase motor (1200–1400 RPM)
- Blower Housing : Powder-coated GI casing with anti-vibration mounting and flexible duct connection
- Power Supply : 220–230 VAC, 50 Hz, single phase (CE marked)
- Base Stand : Powder-coated heavy-duty floor stand with leveling feet & lockable castor wheels.
- Accessories : User Manual, 5/15 Amp switched with cable (3 Nos.), Adapter, Tubes, Gas nozzles (2 Nos.), Busen Burner (2 Nos.), HEPA Filter (1 Nos.), leveling feet, lockable castors, PAO test port, easily replaceable pre-filter, UV germicidal lamp (2 Nos.), low-noise anti-vibration construction, digital pressure indicator, audible & visual HEPA replacement alarm.
- Certifications : HEPA Filter Test Certificate, Pressure Guage & Air Velocity Anemometer Calibration Certificate

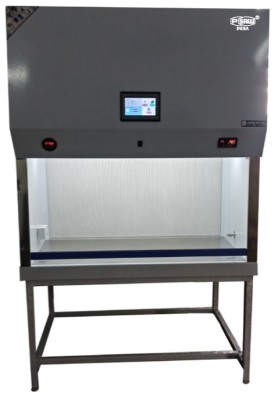

LAMINAR AIR FLOW CABINET (58-17)
Salient Features:
- Horizontal Laminar Air Flow Workstation for contamination-free operations.
- HEPA-filtered unidirectional Airflow.
- Suitable for aseptic media preparation, culture handling, sample preparation, plate pouring and other laboratory applications.
- LCD Controller displaying air velocity, differential pressure, UV lamp status, LED lamp status, blower status, UV operating hours and total operating time.
- Heavy-duty tubular stand with control panel and key lock
