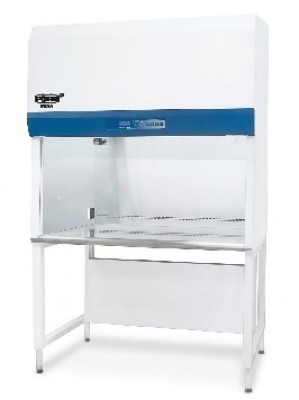

LAMINAR AIR FLOW CABINET
LAMINAR AIR FLOW CABINET
Model No: PSAW-56-03
- CLEAN AIR. PRECISE WORK. CONFIDENT RESULTS.
- Designed for superior protection, the PSAW-56-03 Laminar Air Flow Cabinet ensures a contaminant-free work environment for critical applications in laboratories, research facilities, and cleanrooms.
SALIENT FEATURES:
- SS 304, removable, non-corrosive working tray.
- Hermetically sealed cabinet and door frame.
- Washable synthetic non-woven polyester fiber pre-filter for air purification.
- Programmable automatic UV sterilization cycle.
- UV lamp automatically switches OFF when front sash is opened.
- Separate ON/OFF controls for Main Power, Blower, LED Light, and UV Lamp.
- Digital controller with air velocity setting, low airflow alarm, working time recorder, temperature monitoring, UV & LED lamp control.
- Closed cabinet with HEPA filtration system, washable pre-filter, double inlet centrifugal blower, LED lighting, UV germicidal lamp, digital controls, indicators, and mounted on a sturdy stand with leveling feet.
Product Information
- CLEAN AIR TECHNOLOGY : HEPA filtered laminar airflow for maximum protection
- UV STERILIZATION : Programmable UV cycle for sterile working conditions
- POWERFUL PERFORMANCE: Double inlet centrifugal blower for uniform airflow
- SMART CONTROLS : Digital controller with multiple safety & monitoring features
TECHNICAL SPECIFICATIONS:
- Model : PSAW-56-03
- Configuration : Freestanding
- Air Flow Type : Vertical
- Working Chamber Size (LxWxH ): 1200 x 600 x 600 mm (4x2x2 ft)
- Exterior Construction : Electro-galvanized steel with epoxy powder-coated finish
- Interior Construction : Stainless Steel 304
- Working Tray : Stainless Steel 304, thickness 1.5 mm
- Side Panels : Stainless Steel 304, thickness 2 mm
- Front Sash : Manual sliding type
- Sash Material : Tempered safety glass, 5 mm thick
- Control System : Microprocessor-based digital LCD controller
- Display : Color LCD Touch Screen Display
- Air Velocity : 0.26-0.38 m/s
- Air Cleanliness : ISO 14644-1 Class 5 (Class 100/Grade A)
- Main Filter : H14 HEPA Filter
- Filter Efficiency : ≥99.995% at 0.3 µm
- Blower Type : Double Inlet Centrifugal Blower
- Pressure Monitoring : Digital differential pressure gauge with alarm
- Illumination : LED Lamp
- Light Intensity : ≥2800 Lux
- UV Lamp : Germicidal UV Lamp, 20 W
- Utility Ports : 3 utility valves for Air & Vacuum Valve
- Noise Level : $65 dB(A)
- Power Supply : 220-230 V AC, 50 Hz, Single Phase
- Certifications : CE, ISO 9001 & ISO 13485 Certified and US FDA Compliant
- Safety Standard : IEC 60601-2-18
- Accessories : User Manual, One universal 3-pin socket (5A/6A)
