Microscopy & Optical Calibration ApparatusMicrometric Slide
High-Precision Optical Glass Stage Micrometer and Microscope Calibration Slide with Laser-Etched 0.01 mm Scale Divisions for Compound, Stereo, and Digital Microscopes.
What is a Micrometric Slide?
A Micrometric Slide (commonly referred to as a stage micrometer or microscope calibration slide) is a precision-engineered optical glass slide featuring an ultra-fine, laser-etched graduated scale—typically 1 mm total length divided into 100 equal parts of 0.01 mm (10 microns) each. It is placed on a microscope stage to calibrate eyepiece reticles (ocular micrometers) and digital imaging software for exact dimensional measurement of microscopic specimens.
1. Detailed Product Overview
The Micrometric Slide manufactured for professional microscopy laboratories is an indispensable optical standard engineered for accurate magnification verification and ocular reticle calibration. Equipping university biology labs, pathology centers, and industrial quality control rooms with a certified stage micrometer ensures that researchers can measure cell diameters, bacterial lengths, and micro-particles with sub-micron precision. Every high-grade micrometric slide features crystal-clear optical glass construction that delivers distortion-free light transmission under high-power objective lenses.
Crafted from low-expansion borosilicate or crown optical glass, each microscope calibration slide incorporates a permanently etched precision ruler scale protected by a bonded circular cover glass. The standard metric reticle calibration slide divides a 1.0 mm reference line into 100 crisp graduations, where each single division equals exactly 0.01 mm (10 µm). Using this precision scale for ocular micrometer calibration enables technicians to calculate exact calibration factors across 4x, 10x, 40x, and 100x oil-immersion objectives effortlessly.
In modern digital microscopy, metallurgy, and clinical hematology, the Micrometric Slide serves as the primary physical reference used to calibrate camera measurement software and automated image analysis systems. The ground, beveled edges and bright-line or dark-line etched markings on our stage micrometer provide sharp visual contrast under both brightfield and phase-contrast illumination. Furthermore, each microscope calibration slide is supplied inside a cushioned, velvet-lined or foam-padded protective storage box to prevent scratches and dust contamination between uses.
Engineered to comply with rigorous international optical standards, every micrometric slide undergoes strict microscopic inspection for line crispness, zero scale drift, and dimensional accuracy. Academic science boards, medical diagnostics laboratories, and global optical instrument distributors favor our reticle calibration slide inventory for its reliability and factory-direct bulk pricing. By providing dependable calibration standards to laboratories worldwide, this product continues to be a vital tool for scientific research tenders.
2. Key Features & Technical Advantages
0.01 mm Laser-Etched Scale
Features an ultra-fine 1 mm linear scale divided into 100 exact subdivisions (0.01 mm / 10 µm per division) for high-accuracy calibration.
Crystal-Clear Optical Glass
Manufactured from high-transmission optical glass with ground edges and a protective bonded cover slip over the scale.
Universal Microscope Fit
Standard 75 mm x 25 mm slide dimensions fit all compound biological microscopes, stereo microscopes, and digital camera setups.
Protective Cushioned Case

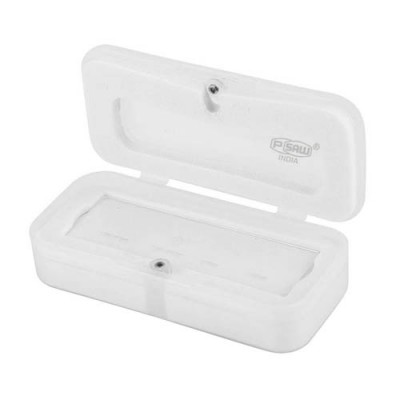

Supplied in a rigid, foam-lined storage box to safeguard the delicate etched reticle from scratches and dust.
3. Laboratory Calibration & Handling Protocol
1Stage Placement
Place the micrometric slide onto the microscope mechanical stage and center the etched scale circle over the condenser light.
2Objective Focusing
Focus sharply on the 0.01 mm scale lines using the lowest objective lens first before stepping up to higher magnifications.
3Reticle Alignment
Rotate the eyepiece ocular micrometer so its arbitrary grid aligns parallel with the stage micrometer scale to compute the conversion factor.
4Cleaning & Case Storage
Wipe gently with lens tissue and optical cleaner if needed, then return the slide immediately to its padded storage box.
Direct Manufacturer Quotation & Bulk Orders
Contact for institutional prices, product catalogues, and global export details.
4. Variant Matrix & Technical Specifications
Specification Parameter Technical Details Product Name Micrometric Slide (Stage Micrometer / Microscope Calibration Slide) Slide Dimensions 75 mm x 25 mm x 1.1 mm (Standard 3" x 1" Glass Slide) Substrate Material High-Clarity Optical Crown / Borosilicate Glass with Ground Edges Total Scale Length 1.0 mm (Metric) / 0.04 inch (Imperial Optional) Scale Subdivision 100 Divisions (1 Division = 0.01 mm / 10 Microns) Etching & Protection Permanent Precision Etching Protected by Bonded Circular Cover Glass Packaging Individual Padded Plastic / Velvet-Lined Protective Case Target Institutions Universities, Pathology Labs, Microbiology Centers, Metallurgy & QC Labs 5. Frequently Asked Questions (FAQs)
Q1: How does a micrometric slide calibrate an eyepiece ocular micrometer?
An eyepiece ocular micrometer has arbitrary divisions whose real size changes with magnification. By aligning the ocular grid against the known 0.01 mm subdivisions of a micrometric slide on the stage, you can calculate the exact micrometer value per ocular unit for each objective lens.
Q2: What is the value of one smallest division on a standard metric stage micrometer?
On a standard 1 mm / 100 divisions metric micrometric slide, the total scale length is 1.0 millimeter divided into 100 equal intervals, meaning each single division equals exactly 0.01 mm (or 10 micrometers).
Q3: Can this microscope calibration slide be used with digital microscope cameras?
Yes. Digital microscopy imaging software requires capturing an image of a stage micrometer at a chosen magnification to set the pixel-to-micron ratio before measuring biological or material samples.
Q4: How should a micrometric slide be cleaned without damaging the etched scale?
Because the etched scale is protected beneath a bonded cover glass, you can clean the upper glass surface gently using soft optical lens paper moistened with distilled water or isopropyl alcohol. Never use abrasive cloths or harsh solvents.
Q5: Are micrometric slides available in bulk for university and institutional tenders?
Yes. We manufacture and export micrometric slides and ocular reticles in bulk institutional quantities, supplied in individual protective cases for university biology departments and scientific distributors worldwide.
6. Domestic & Global Supply Network
Supply Across All Indian States & UTs
- Andhra Pradesh
- Arunachal Pradesh
- Assam
- Bihar
- Chhattisgarh
- Goa
- Gujarat
- Haryana
- Himachal Pradesh
- Jharkhand
- Karnataka
- Kerala
- Madhya Pradesh
- Maharashtra
- Manipur
- Meghalaya
- Mizoram
- Nagaland
- Odisha
- Punjab
- Rajasthan
- Sikkim
- Tamil Nadu
- Telangana
- Tripura
- Uttar Pradesh
- Uttarakhand
- West Bengal
- Delhi NCR
- Jammu & Kashmir
- Ladakh
- Chandigarh
- Puducherry
Worldwide Export Destinations (Region-wise Clusters)
North & South America
Europe & UK
Middle East & Gulf (GCC)
Asia-Pacific & SAARC
Africa & Middle East
7. Top 5 Targeted Terms
Micrometric Slide Stage Micrometer Microscope Calibration Slide Ocular Micrometer Calibration Reticle Calibration Slide
Micrometric Slide
Also known as a Stage Graticule Slide.
Suitable for use with transmitted light microscopes.
Micrometric glass slide for microscope calibration.
For use together with the micrometer eyepiece to manually calibrate a microscope for cell counting.
Technical Specifications:-
Size: 26x76mm
Range: 1mm.
Divisions: 0.01mm
