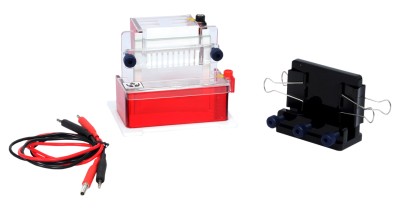

MINI VERTICAL GEL SYSTEM

 Capable of performing Tube Gel Electrophoresis, & Electro Elution using dedicated interchangeable modules.

TECHNICAL SPECIFICATIONS:

• Model  :  Mini Vertical Gel Electrophoresis System with Power Supply and Western Blot Module
• Gel Capacity : Capable of running up to four (04) hand-cast or pre-cast gels simultaneously
• Gel Size : 8.5 × 7.5 cm (W × L)
• Glass Plate : 10 × 8 cm
• Buffer Capacity : ≤750 mL for 2 gels; ≤1000 mL for 4 gels
• Run Time : <1 hr @ 200V
• Glass Plates : 5 Sets ( Reusable glass plates with permanently bonded spacers)
• Combs : 5 Combs, 10-well, 1.0mm Thickness
• Accessories : Casting frames and Stand, Sample loading guide, Electrode assembly, Electrophoresis tank, Safety lid with power cables
• Modular Design : Expandable System Capable of performing Western Blotting, 2D
• Western Blot Module : Compatible Western Blot Transfer module
• Safety Features : Leak-proof Electrophoresis Tank, Safety interlock lid, platinum wire electrodes, & Color-Coded black and Red power leads
• Compliance  : IEC 61010 Safety standards & CE Certified
• Applications : Suitable for separation of DNA, RNA, Proteins, SDS-PAGE, Native PAGE, Western blotting, 2D Electrophoresis, & Electro-Elution Applications
