TECHNICAL SPECIFICATION:
TECHNICAL SPECIFICATION SHEET: HIGH-TEMPERATURE LABORATORY MUFFLE FURNACE
SPECIFICATION PARAMETER
TECHNICAL REQUIREMENT / VALUE
- Equipment Classification
High-Temperature Laboratory Muffle Furnace
- Primary Heating Elements
Molybdenum Silicide (MoSi?) or Silicon Carbide (SiC) rods
- Temperature Sensor (Thermocouple)
R Type (Noble Metal Platinum/Rhodium)
- Temperature Controller
PID Controller (Proportional-Integral-Derivative)
- Programmable Profile Controller
Supports multi-segment ramp profiles)
- Temperature Accuracy
±5°C
- Chamber Dimension (Inner)
20 cm x 40 cm x 10 cm (W×D×H)
- Chamber Insulation
High-grade Ceramic fiber blanket and Heavy-duty Insulation Bricks.
- Exterior Material of Construction (MOC)
Dual housing with active cooling for low skin temperature; includes exhaust air outlet at the rear wall
- Safety Devices
(Over-temperature protection, door safety switch)
- Alarm System
Audible alarm for process completion / safety faults
- Quality Calibration
Calibration certificate included from an NABL-approved laboratory
- Warranty
4 Years
ACCESSORIES:
- 1. Probe thermometers 2 (qty): 25°C - 1600°C
- 2. Two storied frame for the Muffle Furnace as given in the following drawing: Figure -1

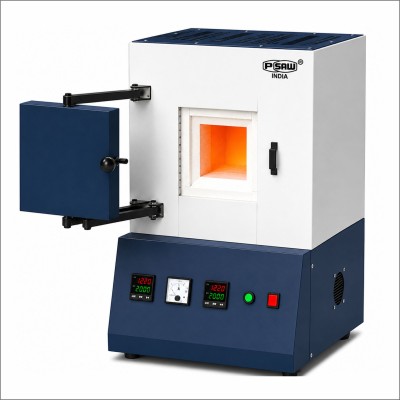

MUFFLE FURNACE (126/A)
HIGH TEMPERATURE PERFORMANCE : Advanced insulation and premium heating elements ensure uniform temperature and excellent efficiency.
PRECISE TEMPERATURE CONTROL : PID controller with programmable profiles ensures accurate, stable and repeatable results.
SAFE & RELIABLE : Equipped with safety devices, over-temperature protection, door safety switch and audible alarm.
DURABLE CONSTRUCTION : Robust dual shell body with active cooling ensures long life and safe operation even at high temperatures.
