Product Information
Technical Specifications:
- Model : PSAW-MF/1800
- Furnace Type : Electric (floor Mounted) high temperature
- Construction : Vacuum-Formed Alumina Ceramic Fiber insulated
- Inner Material : Non-contaminating, (Chemically inert) thermal shock resistant
- Heating Elements : Molybdenum Disilicide (suitable for ≥1700 °C Temp.)
- Sample Heating Zone : 8.85” × 8.85” × 9.5” Approx. (W × H × D)
- Chamber Volume : 10 Ltrs. Approx.
- Max. Temperature : Up to 1795°C
- Operating Temperature : Up to 1745°C
- Temperature Accuracy : ± 1°C
- Temperature Uniformity : ± 5°C
- Heating Temperature : 5-10°C
- Maximum Rating Temperature : 50 °C below (for Continuous Operation)
- Controller : PID Based Digital Temperature Controller
- Programmability : Multi-segment programming
- Program Functions : Heating ramp, soak/dwell, controlled cooling
- Segments : 10–30 segments
- Thermocouple Sensor : B Type.
- Power Supply : 240V AC (Three Phase)
- Power Consumption : 5 KW to 8 KW
- Safety Device : Audio/Visual Alarm (International Standard CE/ISO Certified)
- Weight : ≤ 50 kg
- Certifications : IEC, ISO, CE
Accessories:
- High-purity alumina crucibles / trays
- Thermocouple & Fittings
- User manual (hard & soft copy)
- Test Certificate

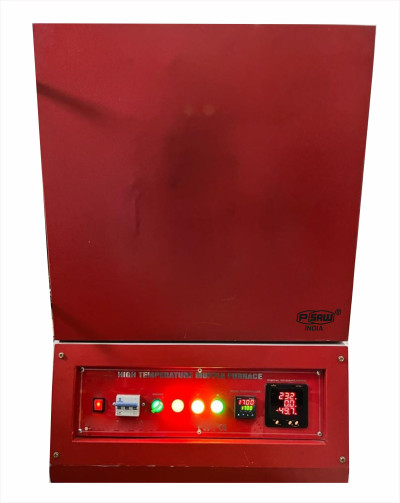

MUFFLE FURNACE 1800
Salient Features:
- High Temperature Heat Treatment Environment For Industrial Colleges, Research Institutes, Factories And Other Industrial Laboratories (for ceramic, inorganic & metallic samples).
- Safe, uniform, and reliable heat treatment of Metal Materials, Ceramic Materials, Inorganic material, Nano Materials, And Semiconductor Materials.
- Display indicates Set temperature, Actual temperature & Program status.
- Air, Vacuum / reduced pressure, Inert gas Operation.
- Gas inlet and outlet ports with a suitable gas flowmeter.
- Control knobs for Power regulation & Atmosphere control within the heating chamber.
- Chamber allows easy access for sample loading & maintenance.
- Integrated Control panel with voltage, current & power display include switches suitable for Power control & atmosphere control.
- Automatic cut-off Feature for over-temperature protection.
- Auto Power cut-off on door opening.
- Low External Temperature, due to high-grade thermal insulation.
