Product Information
TECHNICAL SPECIFICATIONS:
- Temperature Range : 100°C to 1200°C
- Working Operation : 1000°C
- Temp. Stability : ±0.2°C (1000°C)
- Chamber Volume Capacity : 10 LT.
- Temp. Uniformity : ±3.6°C (1000°C)
- Temp. Accuracy : ±5°C
- Exhaust System : Air Outlet in Rear Wall of Furnace
- Heating Elements : Dual Side Ceramic Heating Plates
- Controller : Microprocessor with PID Based Digital LED Display Temp. Controller
- External Dimensions (W x H x L) : 720 x 500 x 500mm (±10%)
- Internal Dimensions (W x H x L) : 300 x 250 x 250mm (±10%)
- External Cabinet Material : Stainless Steel (Non Corrosive)
- Internal Chamber Material : Textured Stainless Steel Sheet with Multi Layer Refractory Bricks Insulation
- Insulation Material : Non Classified Fiber Material
- Heat up Timing : 60-90 min. (Up to 1200°C without Loading)
- Communication Port : PC Connectivity Through USB Port
- Voltage Stabilizer : Suitable & Compatible Servo Stabilizer
- Certified : IEC 61010, CE & ISO Certified
- Warranty : 2 Year's
- Documentation : IQ, PQ, and OQ Documents
- Included Accessories : Instructional Manual, Power Cord & Plug, Warranty Card
- Certification : NABL. Accredited Lab Approved Tested Calibration Certified

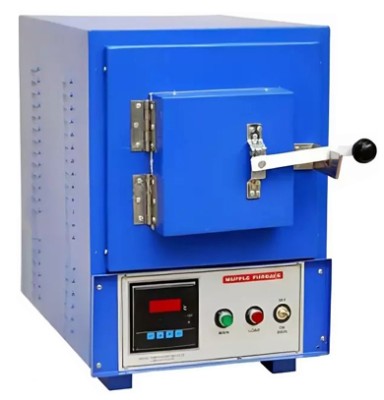

MUFFLE FURNACE (MF-126)
High performance muffle furnace designed for precise heat treatment, ashing, annealing, and other laboratory applications. Built with advanced ceramic heating technology and a microprocessor PID controller, it delivers accurate temperature control, excellent uniformity, and reliable performance for research and industrial use.
SALIENT FEATURES:
- Exhaust air outlet provided on the rear wall of the furnace for efficient removal of fumes and gases.
- Adjustable air inlet integrated into the furnace door to ensure controlled airflow & uniform heating.
- Compact bench-top model design suitable for lab environments with limited installation space.
- Precise and highly accurate temperature control system ensuring stable thermal performance & repeatable results.
- Ceramic heating plates with integral heating elements, fully safeguarded against fumes and splashing materials, allowing easy replacement and long service life.
- Quartz-covered wire heating elements positioned on both sides of the hot zone for enhanced protection against corrosive vapors & aggressive gases.
- Advanced program status display showing operating parameters along with estimated program end time and completion date.
- User-friendly interface enabling easy program entry, monitoring, and control of furnace functions.
- Designed for safe operation under applications involving process gases and volatile fumes.
