Optical Bench (Complete Set) for Practical Optics Experiments
Bring geometrical optics to life with an optical bench designed to arrange and align optical components for classroom and laboratory demonstrations. Explore image formation, focal length, lenses, mirrors and fundamental ray-optics principles.
Lens Experiments Mirror Optics Image Formation Physics PracticalsUnderstand Image Formation on an Optical Bench
Positioning an object, lens and screen along a graduated bench helps students investigate how component placement affects the image formed. The actual arrangement depends on the experiment.
What Is an Optical Bench Complete Set?
An Optical Bench Complete Set is an educational optics apparatus that provides a common base for positioning and aligning optical components. Its graduated scale helps students record component positions and study relationships between object distance, image distance and focal length.
Depending on the supplied model, a complete set may contain a bench or rail, sliding holders, lenses, mirrors, an object marker, a light source and an observation screen. These components are used to investigate how light travels through optical systems and how images are formed.
The term “complete set” can refer to different configurations. Buyers should verify the actual component list, bench length, power requirements and included accessories before ordering.
Experiments You Can Perform
Focal Length of a Convex Lens
Investigate the formation of a sharp image and use measured object and image distances to determine the focal length.
Image Formation by Lenses
Observe how changing object distance affects image position, image size and orientation.
Mirror Image Experiments
Study image formation using compatible mirrors and holders included in the particular set.
Object and Image Distances
Use the graduated scale to record positions and compare observations with optics equations.
Magnification
Compare image and object heights where the experimental setup allows these measurements.
Ray Optics Demonstrations
Support lessons on the behaviour of light through lenses and other supplied optical elements.
Important Formula for Lens Experiments
1/f = 1/v − 1/uIn the Cartesian sign convention, f is the focal length, u is the object distance and v is the image distance. Use signed values consistently when applying the lens formula.
The formula is useful for comparing experimental measurements with theoretical predictions. The method of observation and measurement depends on the particular practical.
How to Use an Optical Bench in the Laboratory
- Set up the bench. Place it on a stable, level surface and check that the sliding holders are secure.
- Position the optical components. Arrange the object, lens or mirror and screen as required by the experiment.
- Align the optical system. Adjust the heights and positions of the components so that the intended light path is established.
- Observe the image. Where a screen is used, adjust its position to obtain a clear image when the optical setup permits projection.
- Record and calculate. Note the component positions, calculate the relevant distances and compare the observations with the theory.
What Should You Check Before Buying?
Verify the following details for your required Optical Bench Complete Set to ensure it matches your laboratory syllabus.
- Bench material, length and graduation scale
- Number and type of sliding holders
- Convex and concave lenses, if required
- Mirror types and mounting arrangements
- Light source and power supply requirements
- Object markers, screens and other included accessories
- Intended experiments and operating instructions
Suitable for Educational Physics Laboratories
The Optical Bench Complete Set is relevant to school science laboratories, senior secondary physics departments, colleges, universities and teacher-training institutions. It helps instructors demonstrate ray optics concepts and gives students a practical way to record observations and perform calculations.
PSAW India offers educational laboratory equipment for institutions looking to equip or expand their physics practical facilities. For the correct selection, request confirmation of the available model and included components.
Explore More PSAW Educational Categories
Browse related educational laboratory supplies and physics teaching equipment from PSAW India.
Frequently Asked Questions
What is an Optical Bench Complete Set used for?
It is used for physics laboratory experiments involving lenses, mirrors, focal length, object and image distances, magnification and image formation.
What components are included in a complete optical bench set?
Depending on the model, a set may include a graduated bench, sliding holders, lenses, mirrors, an object marker, a light source and a screen. Confirm the actual supplied component list before purchasing.
Can an optical bench be used to find the focal length of a convex lens?
Yes. With a suitable lens and image-observation setup, students can measure object and image distances and apply the lens formula to determine focal length.
Is an optical bench suitable for school and college labs?
Yes. Optical benches are commonly used to teach geometrical optics in school, college and university physics laboratories. Choose a configuration that matches the intended practical work.
Does the complete set include a light source and power supply?
These items depend on the model. Check the product's confirmed accessory list and electrical requirements before ordering.
How can I enquire about an Optical Bench Complete Set from PSAW India?
Contact PSAW India to request details of the available configuration, accessories and suitability for your institution's laboratory requirements.
Need an Optical Bench Complete Set for Your Physics Lab?
Contact PSAW India for product information and help identifying a suitable optical bench configuration for your educational laboratory.
Enquire About This Product

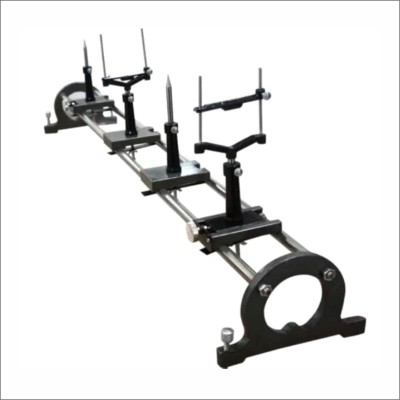

OPTICAL BENCH (COMPLETE SET)
The Optical Bench (Complete Set) is an educational physics laboratory apparatus used to arrange and align optical components for studying focal length, image formation, lenses, mirrors and basic ray optics. It supports practical demonstrations in school, college and university physics laboratories. Included accessories depend on the supplied model configuration.
