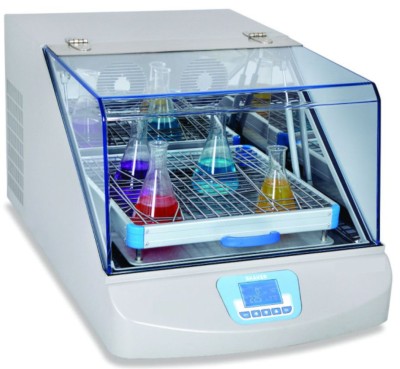

ORBITAL SHAKING INCUBATOR (18-Plus)

Description:

• Bench Top Orbital Shaking Incubator Model PSAW-18 Plus finds application in researches on bacteria, cultivation, fermentation, hybridization, chemical and biochemical reaction, enzymes and tissues research, which have a high requirement on precision of shaking speed and temp.

Salient Features:

• Stainless- Steel Chamber & Platform Easy to clean.
• Amber Colour Acrylic plastic door.
• Microprocessor Controller with large LCD screen for temp. & shaking speed with timing function.
• Self-check function easy to identify problems.
• Smooth start & stop system prevents liquid spillage.
• Auto-controller of fan speed to prevent damage to the samples.
• Safety door switch, auto pause operation when it is opened.
• Made of engineering plastics through molding with a mechanical oscillating tray driven by a Brushless DC motor fitted at the bottom.
• Oscillating locus is circular.
• Duct plate behind the Working chamber is SS thin plate & all the operating keys on the LCD screen are on the front side.
• Box door Is of a Big flap structure made of Transparent plastics to facilitate observation, removal or placement of cultures.
• Closed-loop control of temp. and speed is effected with microcomputer electronic controller using PID regulation mode with LCD screen display.
• Hot & Cold air Stream is circulated through a blower behind the duct plate in the working chamber, thereby improving the uniformity of temperature in the working chamber.
• Safety Multiple Start of Compressor in a short time is prevented & the controller performs the function of prolonged start before compressor is started.
• When the measured temp. is in excess of the set temp. by 3°C, the buzzer will give an overtemperature alarm & simultaneously the heater will shut down.
• When the box door opens, the door switch will cut off the power to stop the Heater, blower and rotating fan from work & the operator can remove or place the cultures safely.
