Product Information
TECHNICAL PARAMETERS:
MODEL
PSAW-18
Shaking Speed Range
30-300 RPM (Accuracy ±1 RPM)
Amplitude
20mm
Temp. Range
<10°C Ambient to 65°C
Temp. Accuracy
±0.5°C @ 37°C (Temp. increment 0.1°C)
Timer Range
1min-2880min: 60Sec.
Platform Size (mm)
450 x 450mm
Maximum Shaking Capacity
4x2000ml, 8x1000ml, 11x500ml, 12x250ml, 28x100ml, 42x50ml, 36 x15ml.
Motor
Brushless DC Motor ( low level noise & vibration Free )
Drive System
Beltless Induction drive
Display
Microprocessor PID Digital LED Display with touch button Controlled.
Overall Dimension Size
55 x 79 x 55.5 CM (W x D x H)
Platform Compatibility
Universal Spring platform for flasks & tube racks, holding 40 Nos. Samples.
Power Consumption
1100W
Power Supply
220 - 230VAC, 50 Hz, Single Phase
Certification
IQ, PQ and Calibration Certified.
Warranty
3 Year’s

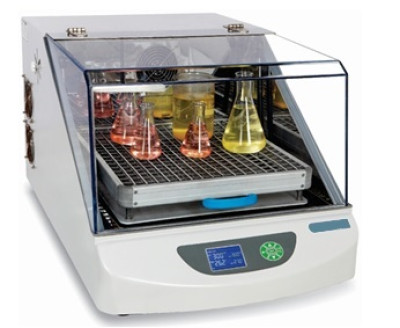

ORBITAL SHAKING INCUBATOR (18)
SALIENT FEATURES:
- Stainless-steel chamber and platform easy to clean.
- Amber acrylic cover for clear experiment observation.
- Microprocessor controller with large LCD screen for temp. and shaking speed with timing function.
- Self-check function easy to identify problems.
- Smooth start & stop system prevents liquid spillage.
- Automatic stop on door opening for safety.
- Auto-controller of fan speed to prevent damage to the samples.
- Compact tabletop refrigerated shaker with inbuilt compressor, high capacity, & maintenance-free operation for Nitrofuran metabolite preparation at 37°C.
- Safety door switch, auto pause operation when it is opened.
